RADIAL ARM SAWS

BEST

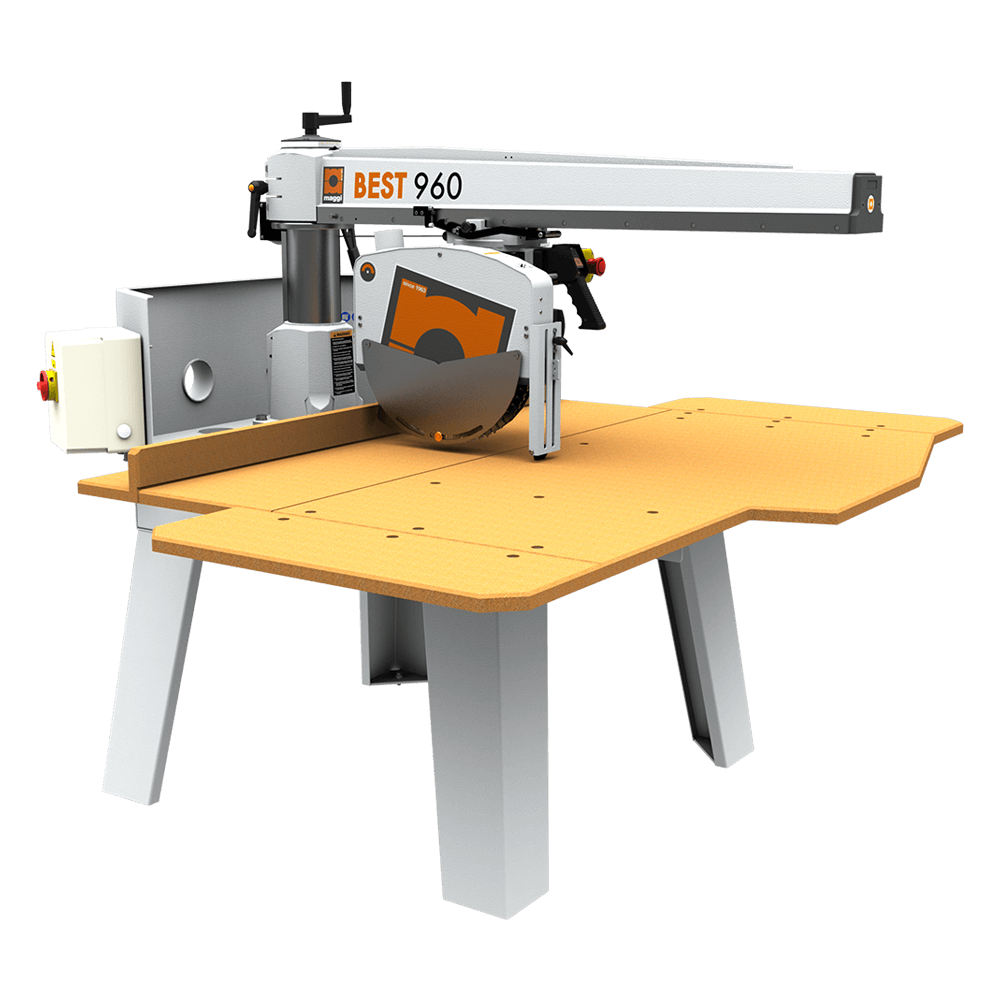

960

Manual, radial-arm, crosscut saw

For straight (90°) and miter (45° left) cross cutting and bevel cutting at 45° left and right, of wooden-based panels and solid wood boards up to 3mt. For furniture manufacturing and joinery.

- Small footprint : well suited to small workshops

- Easy to use

- Versatile

- Useful complement to panel saws

More than 30.000 machines manufactured, over fifty years' experience. 100% made-in-Italy machines abiding by the highest quality standards as a result of the "Lean" manufacturing process, also known as "Toyota System".

MODEL TECHNICAL FEATURES

Radial-arm saw for straight (90°) cross cutting and bevel cutting at 45° left and right. The movement of the cutting unit along the arm, on guides and ball bearings, is manual, aided by a return spring, so is the blade tilting with mechanical locking system at 45° left. The pillar group is made of cast-iron and fixed on a solid frame and legs made of steel. Working bench in MDF. Manufactured according to EC standards.



STANDARD EQUIPMENT

Automatic return-spring

Self-braking motor

Electrical system equipped with motor-overload protection and emergency button

Sound-insulated blade guard made of steel

Well-dimensioned rear hood, ready to be connected to a dust collector

MDF working bench

Lockable switch

Package: recyclable cardboard box

Blade not included







MORE INFORMATION

VERSATILE

Swivelling arm up to 45° left and right and left tilting cutting-head (stop and lock at 45°) allow many different cutting operations for the greatest versatility.

SAFE

Sound-insulated, full-cover blade guard with safety microswitch, anti-kickback, well-dimensioned working bench and emergency button definitively contribute to the operator safety during the cutting process.

SOLID AND ACCURATE

Rugged steel construction, arm and base made of cast iron. Interchangeable, tempered-steel made guides. Cutting head sliding on 8 ball bearings for a smooth, precise and effortless carriage mouvement.

HEAVY-DUTY PROFESSIONAL

Well-dimensioned machine, best suited to cut heavy wooden boards and panels. Max. cutting width up to 865 mm.

WIDE RANGE OF MODELS AND OPTIONS

Well-finished, ergonomic machines

Eco-friendly, rust-resistant powder coating

ERGONOMICS AND COMFORT

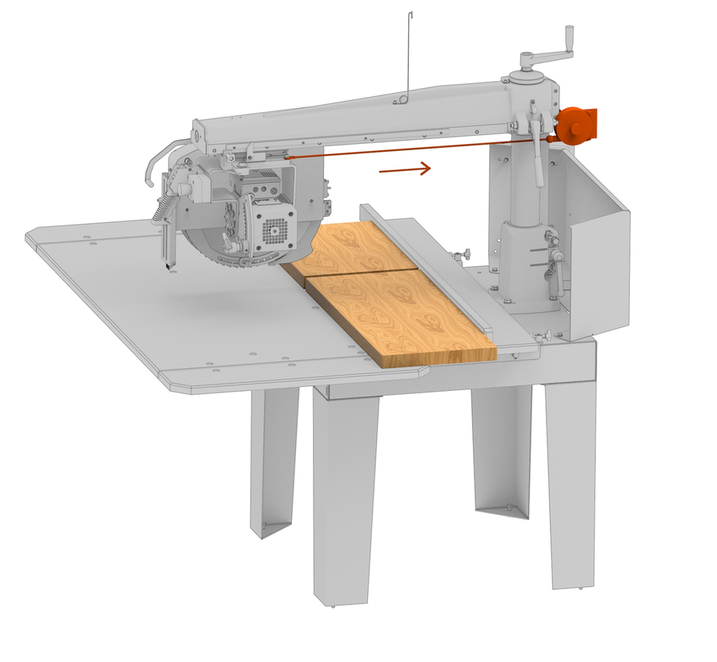

The return-spring device facilitates the return of the cutting head unit to its starting position once the cutting operation is completed, improving the operator comfort. Included as standard equipment on all CE radial arm saws



DATA SHEET

Max. cutting height 125 mm
Max. cutting width 865 x 20 h mm
Min. cutting width 770 x 125 h mm
Max. length of workpiece infinito
Max. cutting width for ripping ................................
Height of blade at 45° from the table 0 - 80 mm
Min. and Max. cutting width at 45° (right) 565 - 615 mm
Min. and Max. cutting width at 45° (left) 350 - 425 mm
Height of blade from working bench 0 - 45 mm
Blade diameter 400 mm
Blade bore diameter 30 mm
Motor HP /KW 4/3 RPM 2800
Working bench dimensions 1970 x 1285 x 25 mm
Diameter of dust collection nozzle on blade guard 60 mm
Diameter of dust collection nozzle on rear hood 100 mm ( n.2)
Overall dimensions of full-assembled machine and net weight 1970 x 1740 x h 1720 mm / 298 Kg
Dimensions of packed machine and gross weight 1500 x 1000 x h 770 mm - 311 KgKg
Dimensions and gross weight - HALF ASSEMBLED MACHINE 1700 x 1250 x h 1190 mm - 368 Kg


ACCESSORIES

Improve the comfort

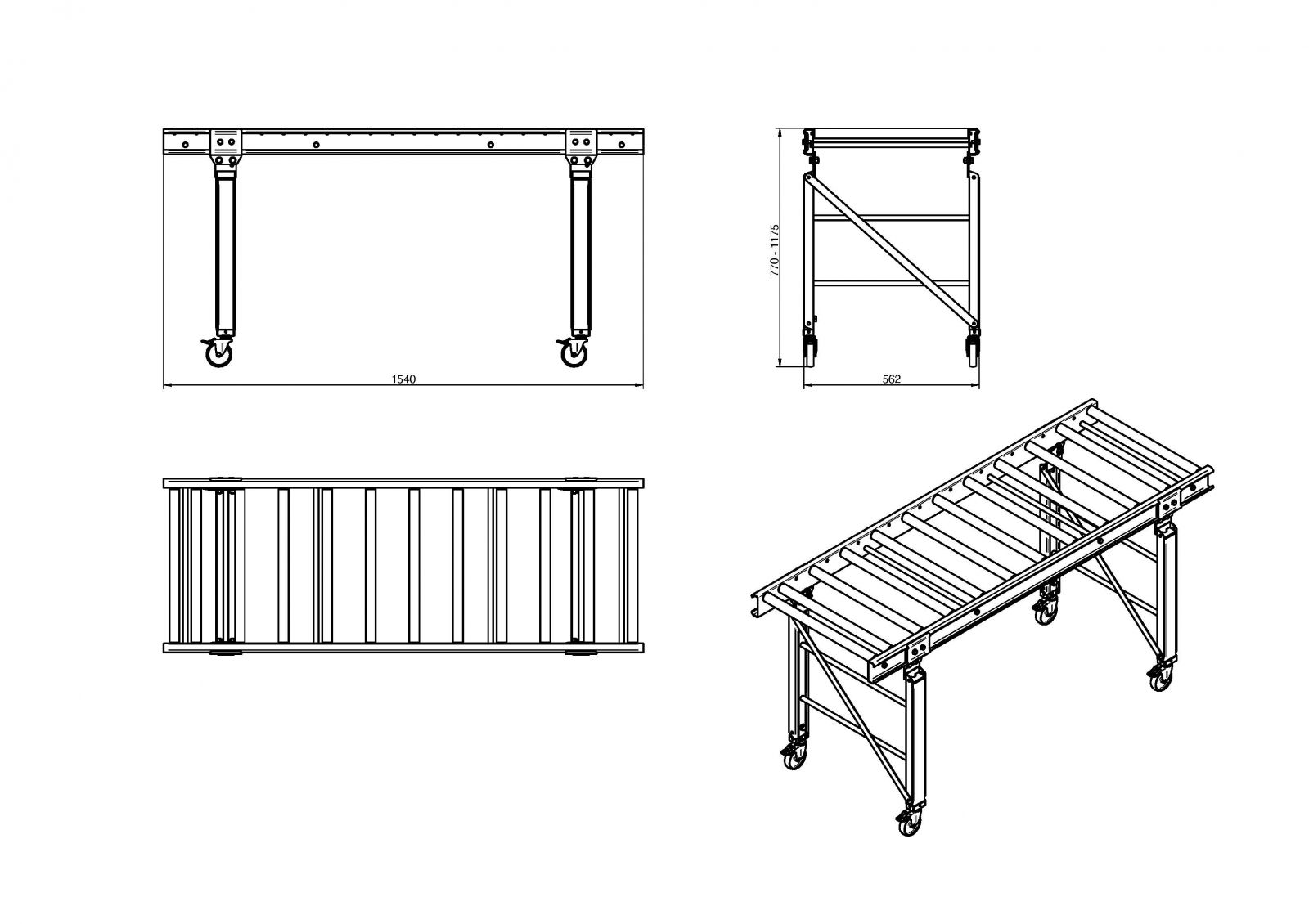

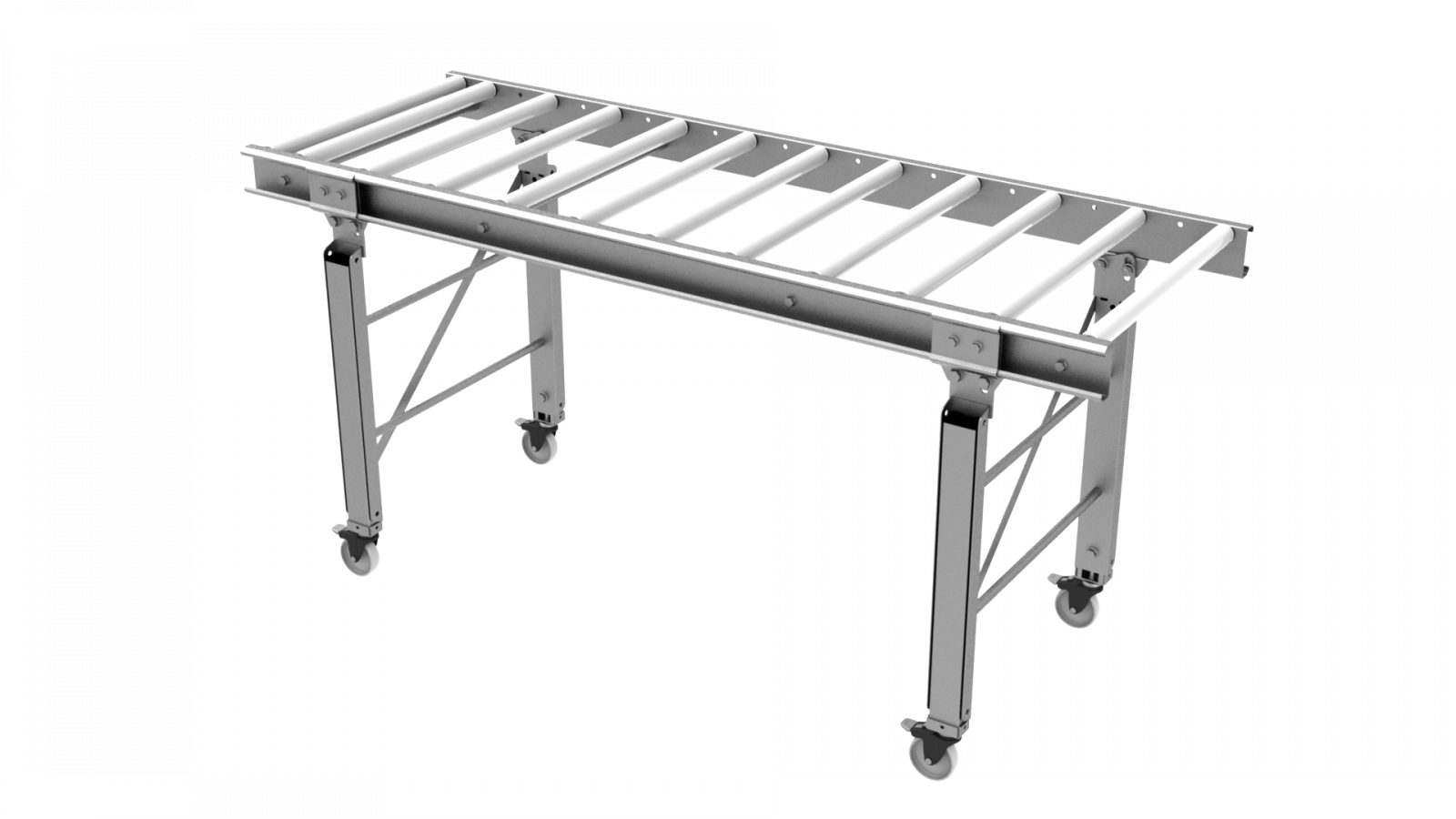

Independent idle-roller table 500x1500 mm

To make the handling of large-size panels easier for the operator

Independent idle-roller table 500x1500 mm ( idle-roller surface only) 562x1540 mm (incl.frame), adjustable height from 770 to 1.175 mm, max. capacity 45 Kg/m. It can be installed both sides of the machine


CODICE: 27304100

Easy Assembly

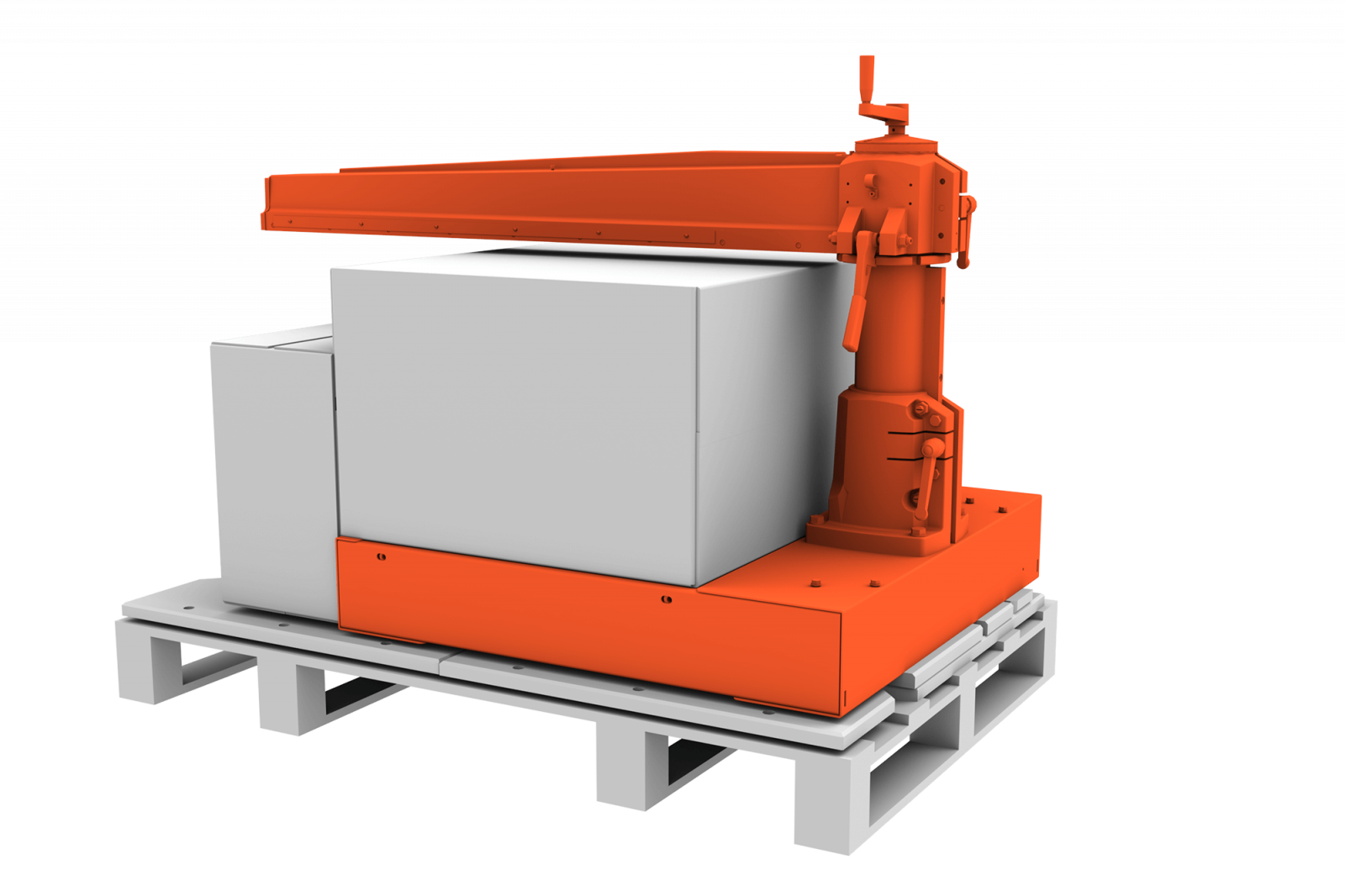

Ready assembled machine packed inside a wooden crate

Ready assembled machine packed inside a wooden crate

Save up to 70% of Your time buying a ready assembled machine: table frame, column and arm mounted and set-up by our technicians. Package in a wooden crate

(option to be specified at the order)


CODICE:

Ergonomics

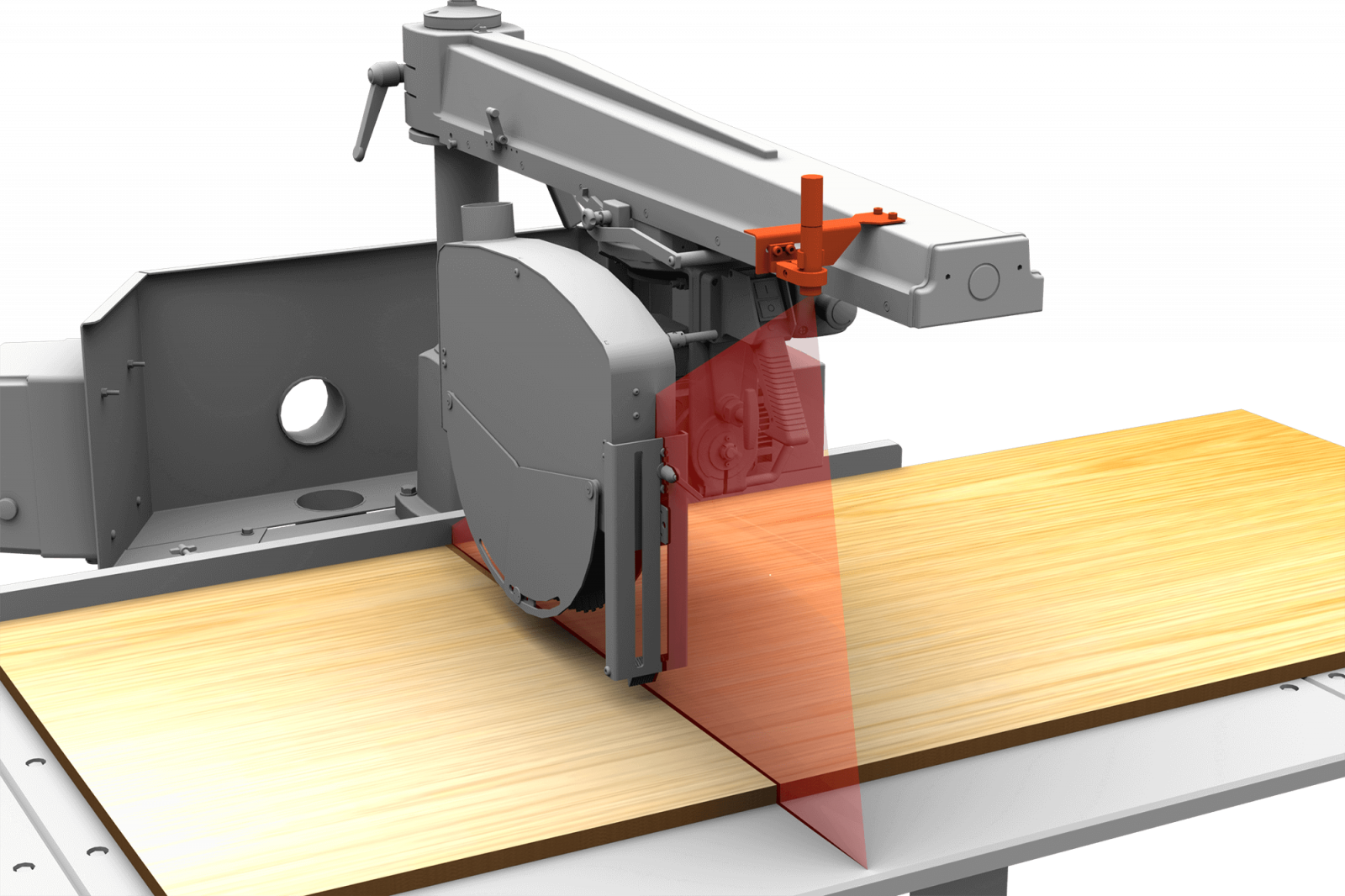

Laser guide

The laser displays the line to be cut on the panel for a more accurate cutting process


CODICE: 25416203

Ergonomics

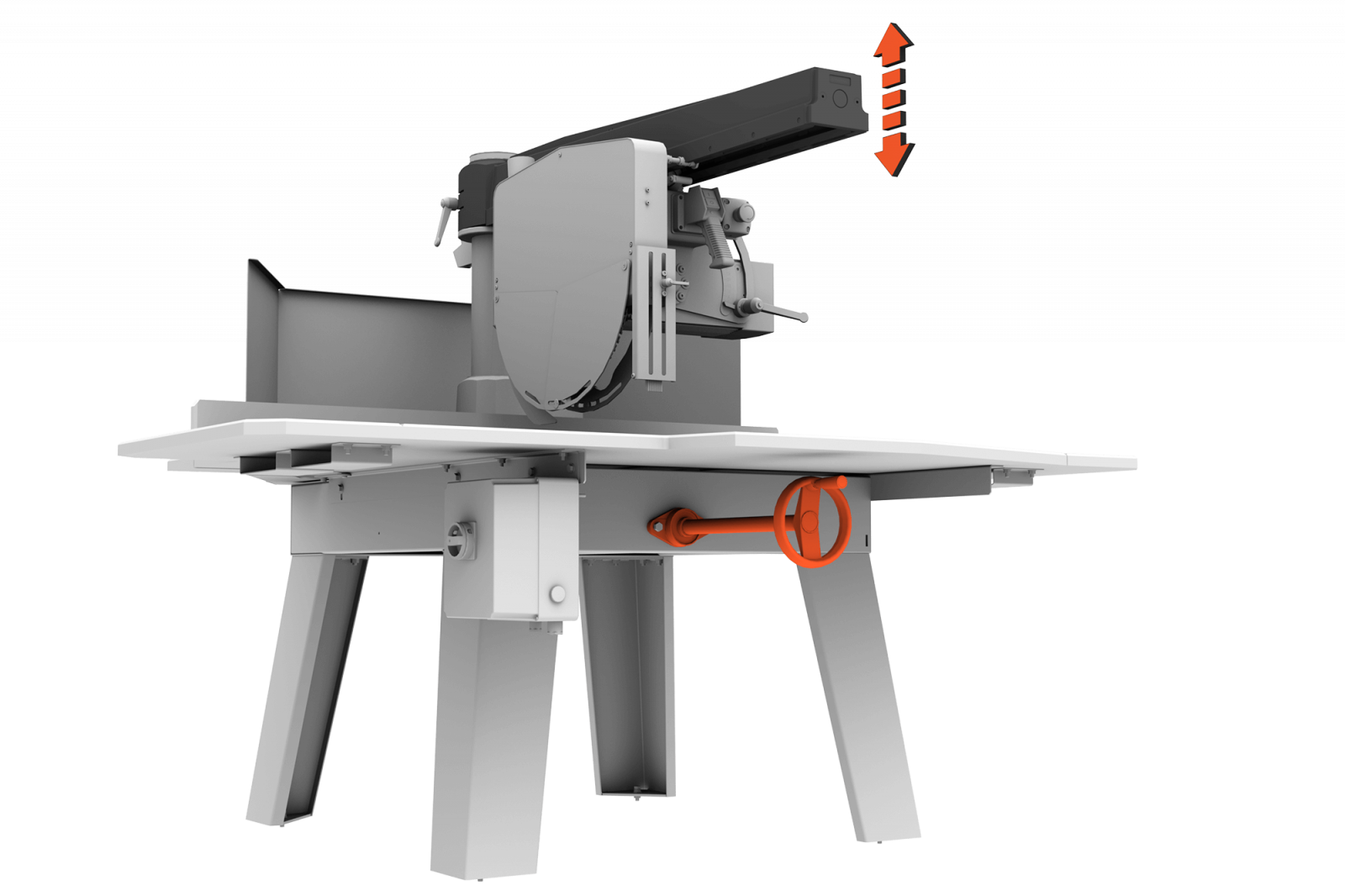

Front lifting handle

It makes the adjustment of the cutting height quicker and more comfortable; it is available only for BEST and BEST "S" models ( option to be specified at the order). It is included in the standard equipment of BEST 1250, BEST 1250 S and BEST 960 S.


CODICE: 25600175

Recommended tools

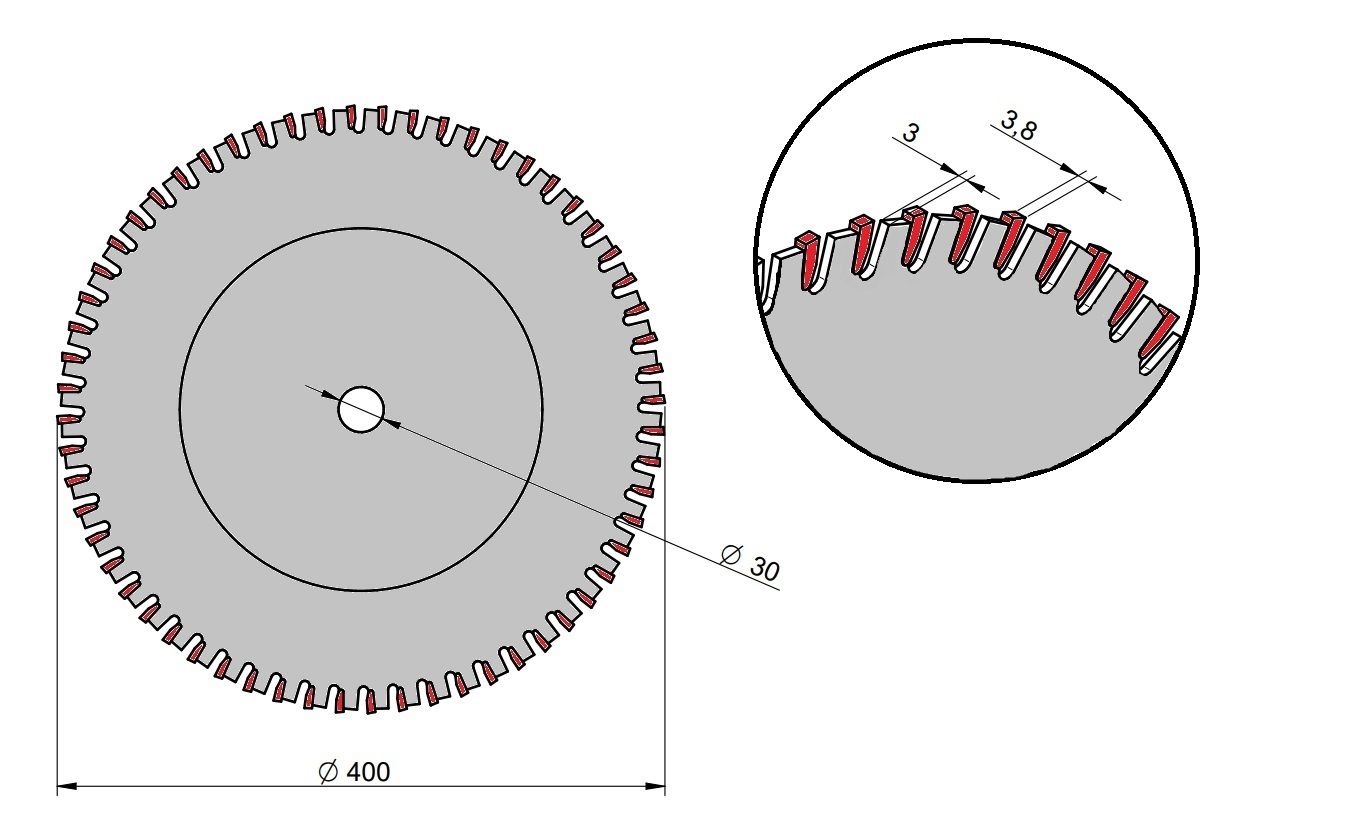

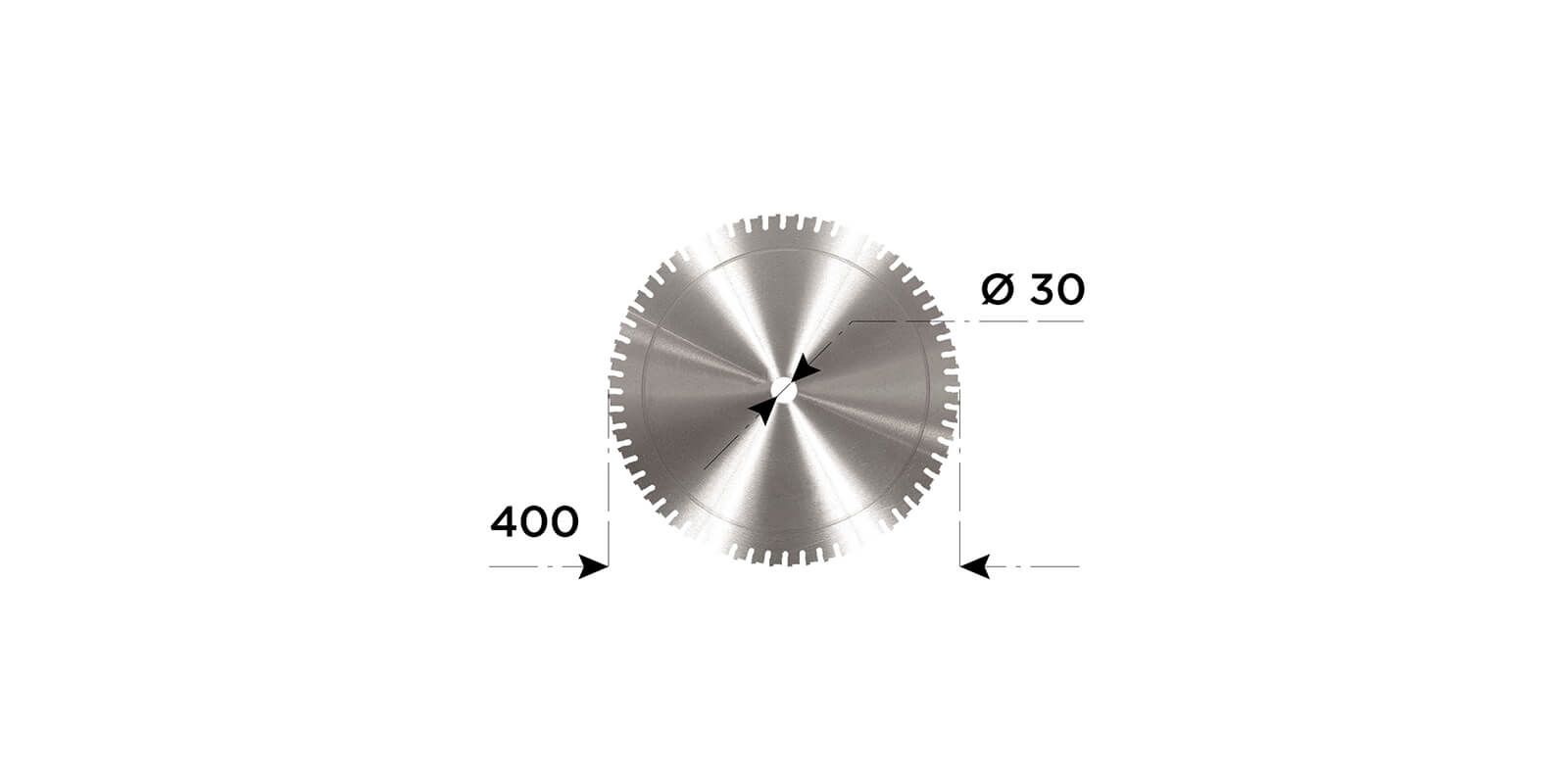

Saw blade 400 x 3,8 (3) x 30 mm / Z 60

Cast-iron blade, well-suited to cut into solid wood, multi-layers, mdf


CODICE: 00015104

Special voltages
Single-phase Motor

To have the machine working in small handcraft shops having an electric system running on 220 Vlts ( option to be specified at the order)


CODICE:



ACCESSORIES

Special voltages
"CSA" standards

Electrical standards abiding by the Canadian wiring regulations ( option to be specified at the order)


CODICE:
