For horizontal and vertical drilling of panels. Suitable for the production of furniture, even large-sized pieces. Ideal for manufacturers of bookcases, shelving units and wardrobes.
- Compact: only 2 m²
- Speeds up machining time compared to a single-head borer, thanks to quick setup, the 3 heads drilling simultaneously and the NEW TOUCH SELECTION of work cycles, heads and pneumatic stops on the rail.
Thirty years of experience with over 3,000 machines produced. 100% Made in Italy. High quality and reliability standards thanks to the Lean production method, Toyota System.
N.2 parallel vertical heads with 21 spindles each, tiltable from 0° to 90°, with the possibility of in-line positioning. ; accurate positioning over digital read-out displays with pneumatic locking system. Boring-depth adjustment on numeric counters
N.1 fixed horizontal boring head with 21 spindles, with patented Spiral System for a quick boring-depth adjustment, and numeric counters for an accurate set-up of the boring height
Distance between first and last spindle on each head : 640 mm and 32 mm interaxis
TOUCHSCREEN for quick selection of each head, work cycles and pneumatic stops on the fence.
Quick-change chuck system
Manufactured according to EC standards
N.3 motors HP2
N.2 hold-down clamps turning from 0° to 90° with well-dimensioned wooden bar 685 x 80 x 55 mm
N.15 quick-change chucks
N.1 -3000 mm x 80 mm fence with 4 pneumatic stops: 2 with magnify glass and nonius, and 2 with digital read-out display.
Package: within a rigid carton box ( non stackable)
Manufactured according to EC standards

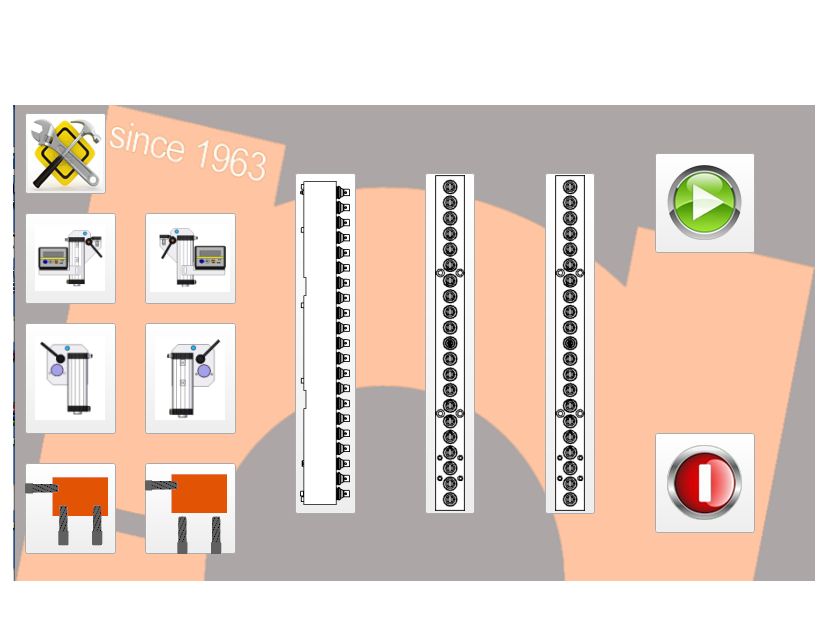

Manage work cycles, select drilling heads and pneumatic stops, electronically, through a wear-resistant touch-screen: easy, fast and intuitive. A new usser experience based on comfort and simplicity.
It performs all the drilling operations to build up a cabinet in just two working cycles: the two vertical boring heads drill the holes for the side panels while the horizontal boring head makes the holes for the panel joints. The dimensioned frame of the BS 321 also allows the inline positioning of the two vertical heads for executing rows of holes with a total pitch up to 1,312 mm, offering even greater flexibility.
Quick and accurate positioning of the vertical boring-heads thanks to a pneumatic locking system and digital read-out displays. Boring-depth and boring-height adjustment of the horizontal head is also easy and fast thanks to the "Spyral System" and the numeric counters.

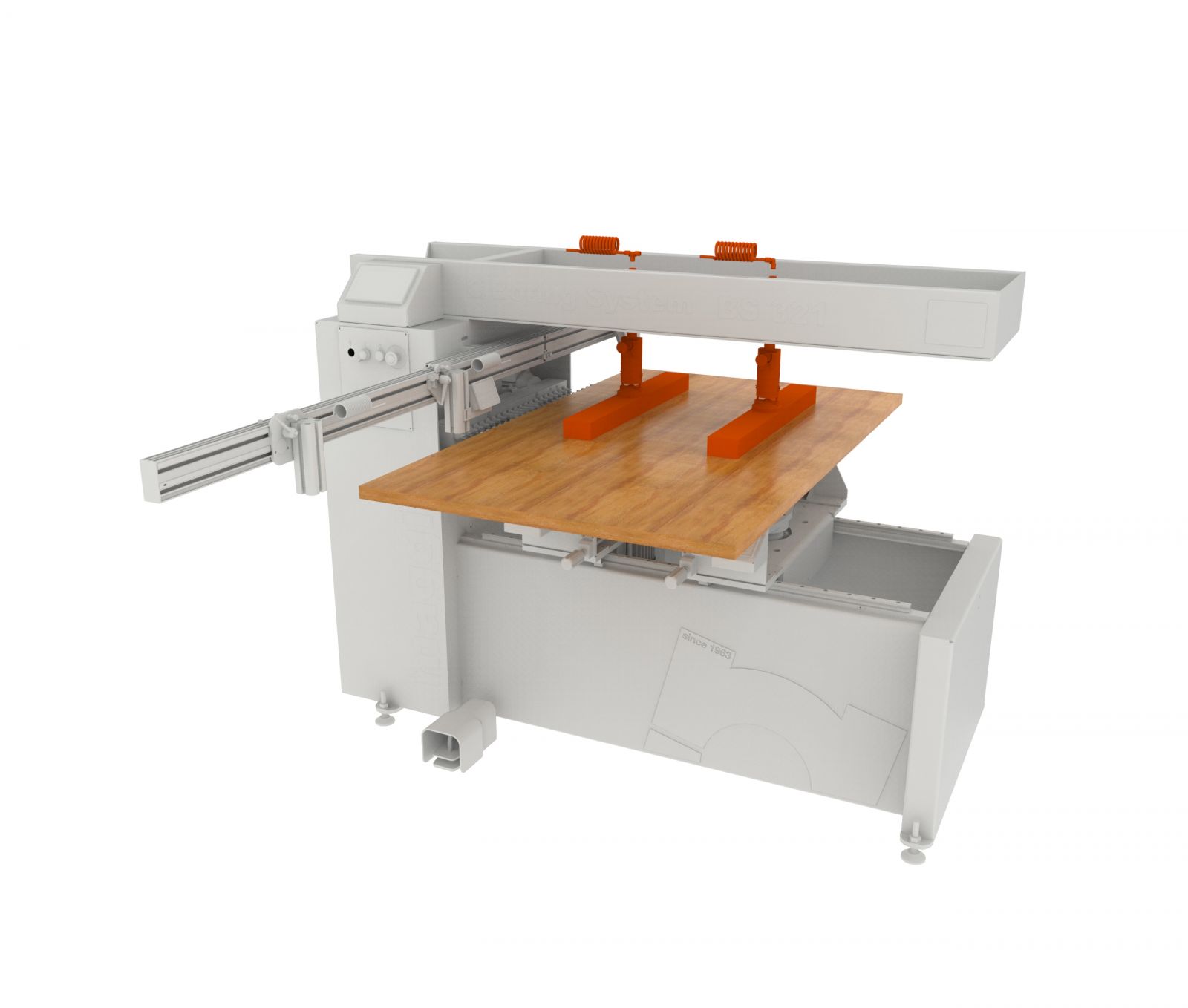

N.2 quick-adjustable, pneumatic, safety clamps, swivelling from 0° to 90°, ensure the perfect panel hold-down, which results into always accurate drilling operations.

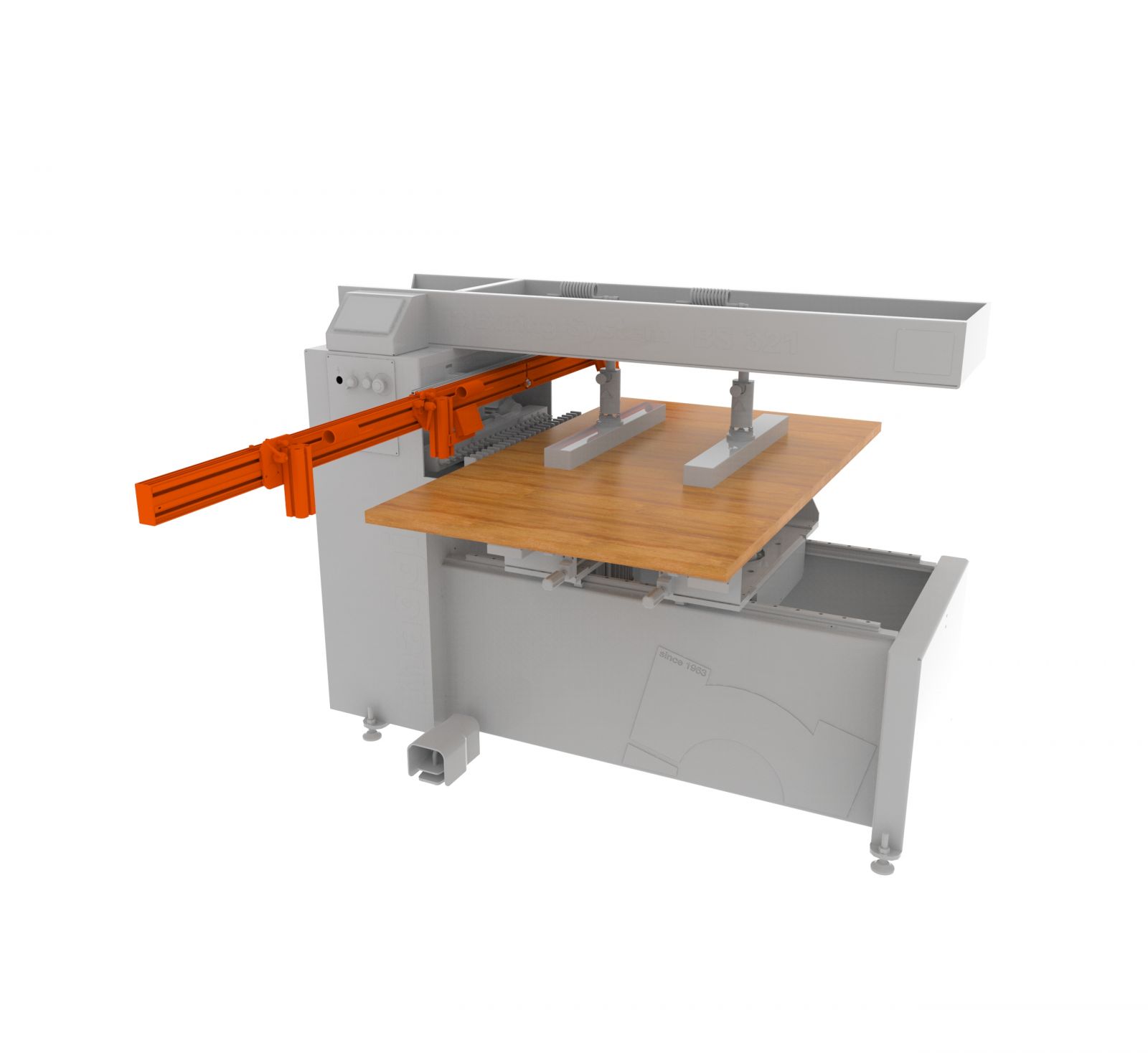

Thanks to N.4 pneumatic reference stops, n.2 with magnify glass and nonius and n.2 with digital read-out display; sliding along the aluminum fence (3000x80 mm).

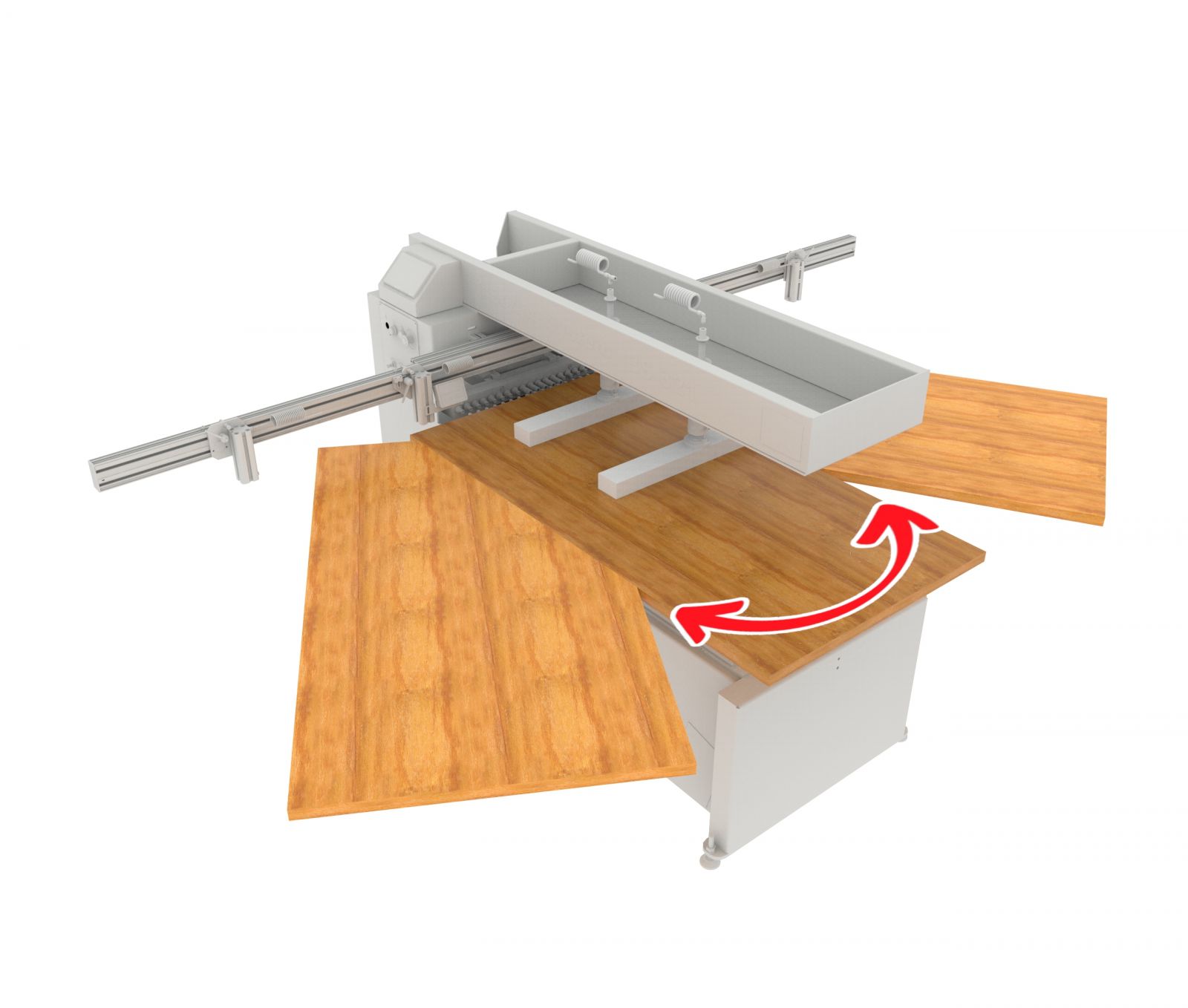

Easy positioning of the long panels thanks to the "Cantilever" structure and to the wide and solid holding tables made of steel. The panel drive is on the front side, easily accessible for the operator.

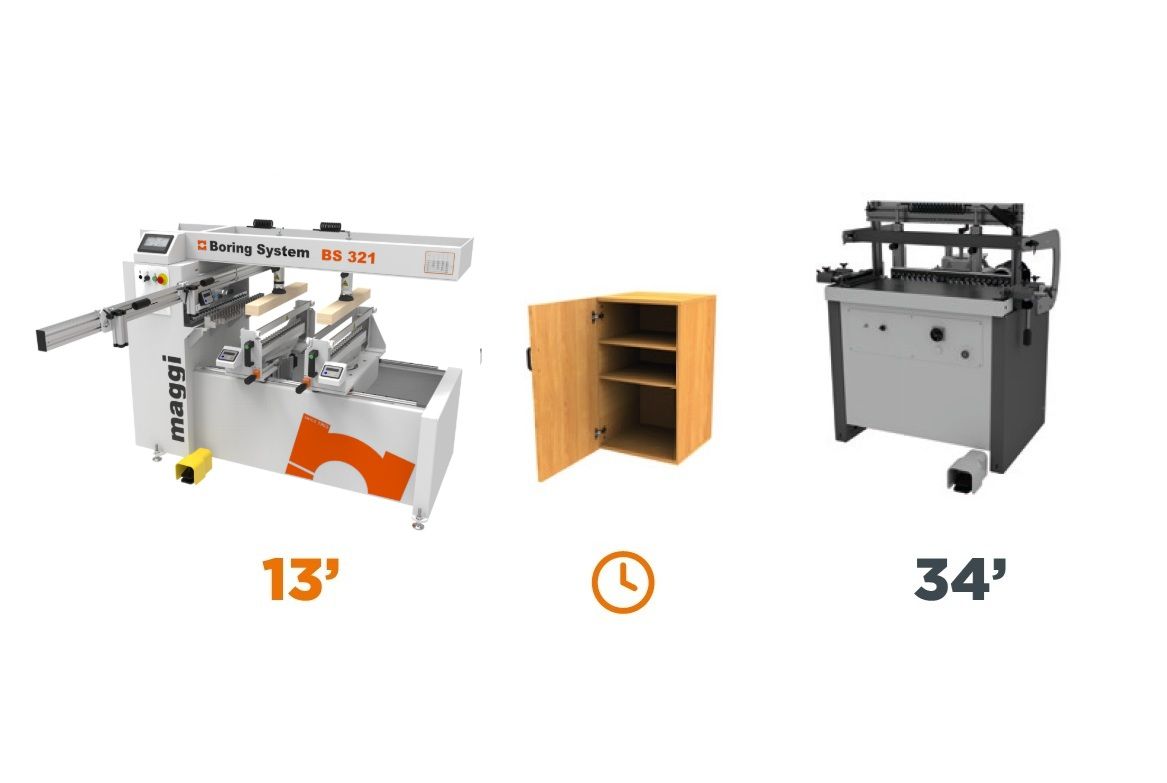

Thanks to the quick-set-up devices and the 3 boring heads working simultaneously, it considerably speeds up the drilling process with respect to a single-head boring machine. Perfectly suited to process big-size panels.
Made of steel, built to last. Eco-friendly, rust-resistant powder coating. Boring heads are made of aluminium, while internal gears are made of rectified steel.
You can apply the boring aggregates of the available typologies ( BLUM, HETTICH, SALICE) to drill the three hinge holes in one working cycle.

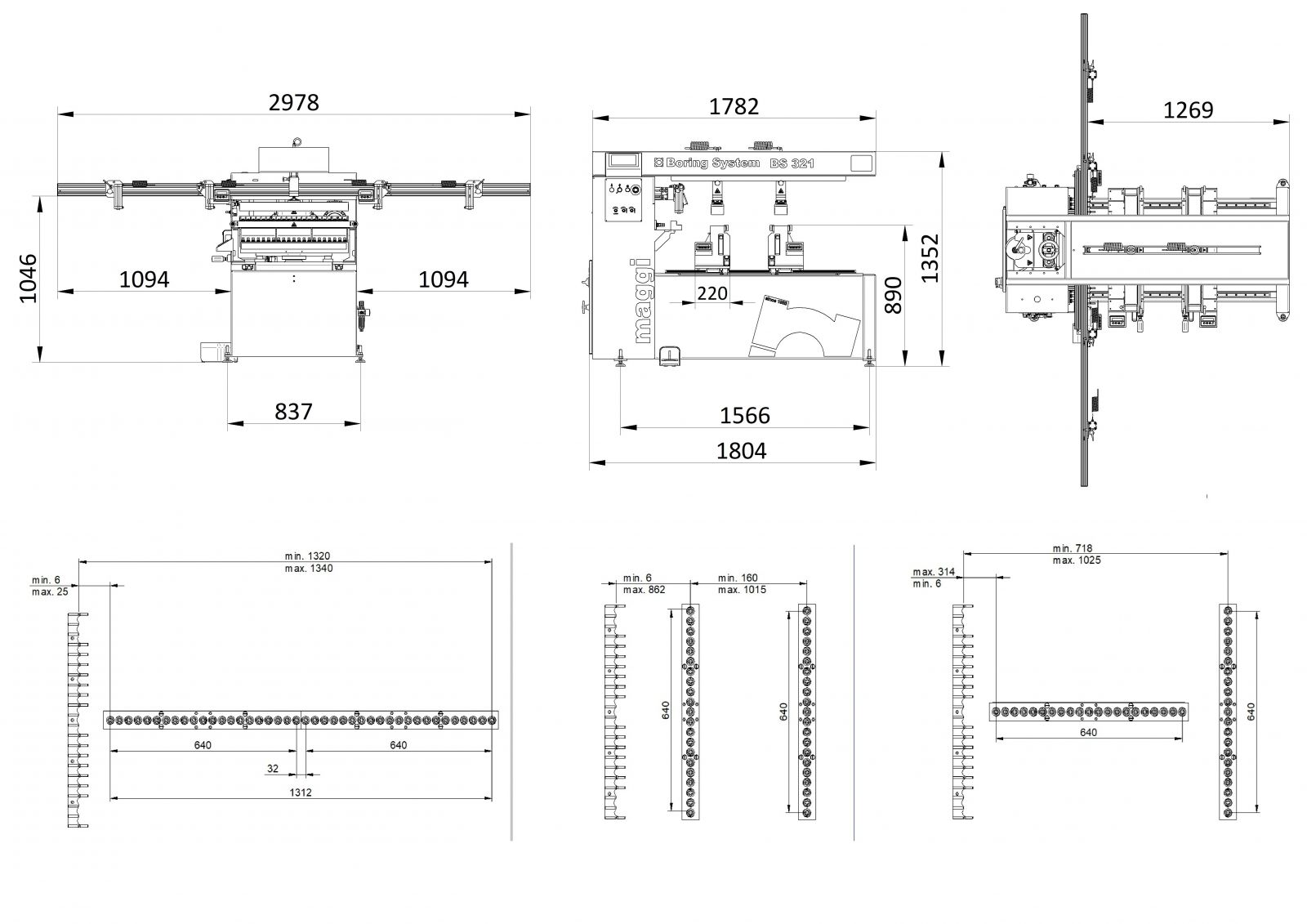

| Boring heads | 3 |
|---|---|
| Distance between the heads min. - max. | 32 - 1.019 mm |
| Spindles each head | N.21 |
| Left and right spindles for each head | N.10 sx - n.11 dx |
| Spindle interaxis | 32 mm |
| Total interaxis | 640 mm |
| Distance between rear head n°1 and rear fence (min. - max.) | 6 mm - 862 mm |
| Distance between front head n°2 and rear fence (min.- max.) | 718 mm - 1.025 mm |
| Max. tool diameter | 40 mm |
| Max. boring depth | 50 mm vert / 65 mm horiz. |
| Height of the working table | 890 mm |
| Max. panel thickness | 60 mm |
| Max. panel dimensions | 870 x 3000 x 60 mm |
| N° motors | 3 (HP2 / KW 1,5 - RPM 2.800) |
| Standard pneumatic pressure | 6 BAR |
| Air consumption per working cycle | NL 30 |
| Dust-collection hood diam. | ............................................ |
| Overall dimensions (incl. full extended side roller tables) (incl. long fence mounted) | ............................................. |
| Net weight | 670 Kg |
| Package dimensions (machine) | 1950x1100x1550 mm |
| Fence package dimensions (each carton - n.2 cartons on the whole) | .............................................. |
| Total gross weight | 720 Kg |
By using these quick-change tool-holders, You can mount Your drill-bits on the boring head in just "one click"
CODE: 36000061
To drill the three hinge holes in one single working cycle
DRILL-BITS NOT INCLUDED
CODE: 00008391
To drill the three hinge holes in one single working cycle
DRILL-BITS NOT INCLUDED
CODE: 00008392
To drill the three hinge holes in one single working cycle
DRILL-BITS NOT INCLUDED
CODE: 00008393
Recommended drill-bit set for drilling aggregate for hinges, made up of n. 2 left-handed drill-bits 8mm diameter and n.1 right-handed drill-bit 35 mm diameter
Tool set made up of 3 drill-bits for hinges
CODE: 26845821
To drill the holes for the "Cabineo" connectors in one single working cycle
Drilling aggregate for "Cabineo" connectors, including 3 drill-bits 15 mm diam.
CODE: 26845820
It provides an additional support for the long panels, increasing their stability during the working process
CODE:
It provides an additional reference point for the positioning of long panels, increasing their stability and consequently the accuracy of the working process.
CODE: 26842203
Please refer to the attached table for the available types of hinge aggregates ...
Please refer to the attached drawings for the requested information...
The hinge drilling aggregates attach to the spindles on the head with a simple click, just like regular drill bits.
Please refer to the attached image...
Please refer to the attached documentation...
The quick-change chucks (code 36000061) are mechanical tool holders that allow for the rapid mounting and removal of drill bits on the head of the boring machine, without the need for additional tools, just a click!
Yes, these multi-head boring machines are also available in a single-phase motor format.
Yes, Maggi semi-automatic boring machines, both single-head and multi-head, are also available in the single-phase motor format.
The reference pin is not just a generic alternative to the bar; in the case of processing (inline vertical drilling) panels longer than 2 meters, it becomes ESSENTIAL to complete the work!
Look at the attached drawings; as you can see, the third and final part of the operation cannot be completed with just the bar because the profile is not long enough to provide the necessary references. Furthermore, the reference pin is always to be preferred over the bar and should be recommended to the customer when precision is an essential requirement!
The hinge head units are offered by Maggi as accessories for their single-head and 3-head drills to allow the creation of the 3 holes for hinge application in a single drilling cycle. There are various types of head unit (see attached image), for each of which we recommend using specific 38.5 mm length drill bits (see attached image) - a 35 mm diameter center bit and 8 or 10 mm diameter side bits.
The hinge head unit can be installed on any spindle of the drill head, whether it rotates clockwise or counterclockwise, so the rotation direction of the bits is not a limiting factor. For ease of use, Maggi offers the 35 mm diameter center bit with a CLOCKWISE rotation and the side bits with a COUNTERCLOCKWISE rotation. The 3 bits can be purchased separately or as a kit.
For the lubrication of the heads of the multi-spindle boring machines , we recommend using IP Athesia PGX 2 type grease. We advise checking the optimal lubrication level every 500 hours of operation.
Attached are instructions and images to correctly perform the lubrication of the drilling head of the multi-spindle boring machines ...
At the time of order, it is possible to request a motor with a different voltage from the standard one (400V - 50 Hz - 3PH), or in single-phase version (only for products that allow it), but it is not possible to have a more powerful motor."
The hinge aggregates that we offer as accessories, in order to make the 3 holes necessary for the application of classic door hinges in a single work cycle, can be applied to the drilling heads of the following Maggi drilling machines:
- BORING SYSTEM 21 PRESTIGE
- BORING SYSTEM 21 TECHNOLOGY
- BORING SYSTEM 23
- BORING SYSTEM 29
- BORING SYSTEM 35
- BORING SYSTEM 323
- BORING SYSTEM 323 DIGIT
HINGE AGGREGATE CANNOT BE APPLIED ON THE BORING SYSTEM 46 DRILLING MACHINE
The drilling aggregates for hinges and for Cabineo can be applied to all traditional Maggi drilling machines, EXCEPT THE BORING SYSTEM 46
ATEX certification is a European directive that applies to equipment that can be used in potentially explosive environments.
Maggi products, particularly the motors used, are not ATEX certified.
For more information, you can contact our customer service office at service@maggi-technology.com
You can identify each spare part within the spare parts area on the website at the following link: https://www.maggi-technology.com/it/
Identifying a spare part is easy; the website has a "spare parts identification" function that can be accessed from various points on the site: at the top of each page on the bar, from the HOME page, and through the MENU in the section dedicated to "SPARE PARTS" (as shown in the attached image), as well as in the "SUPPORT" - "after-sales support" section at the bottom of the contact area.
Once you are in the "spare parts identification" function, simply enter the machine code in the search box, and the corresponding exploded views with the codes for all the spare parts will appear. To find out the price of each spare part, you can contact our service directly via email at service@maggi-technology.com or by calling +39 0571 635 433, or you can ask the nearest MAGGI dealer; you can find them on the dealer map on the website at the following link: https://www.maggi-technology.com/it/contatti/mappa-rivenditori.
To print or download the text and image contents of the product sheet, simply click on the .pdf link located below the main image of the product of interest (as shown in the attached image); then you can decide, within your printing program, whether to proceed with printing the document directly (the print quality will depend on your settings) or to create the PDF file (the .pdf file is quite large due to the presence of many images; for sending the document via email, it is recommended to save the document using the "save PDF with reduced size" option).
Maggi guarantees the availability of spare parts for up to 10 years from the product's manufacturing date.
For spare parts older than 10 years, availability is not guaranteed; you can send a request to our after-sales service (service@maggi-technology.com ) specifying the machine code in question, the year of manufacture, and including a photo of the product and the component for which you are requesting the spare part.
The declared voltage tolerance for connecting the machine to the electrical system is ±10%.
The declared voltage tolerance of the motor, however, is ±22%.
To allow the Maggi consultants to evaluate if a certain processing is feasible with one of their machines, I need to provide the following information and data:
