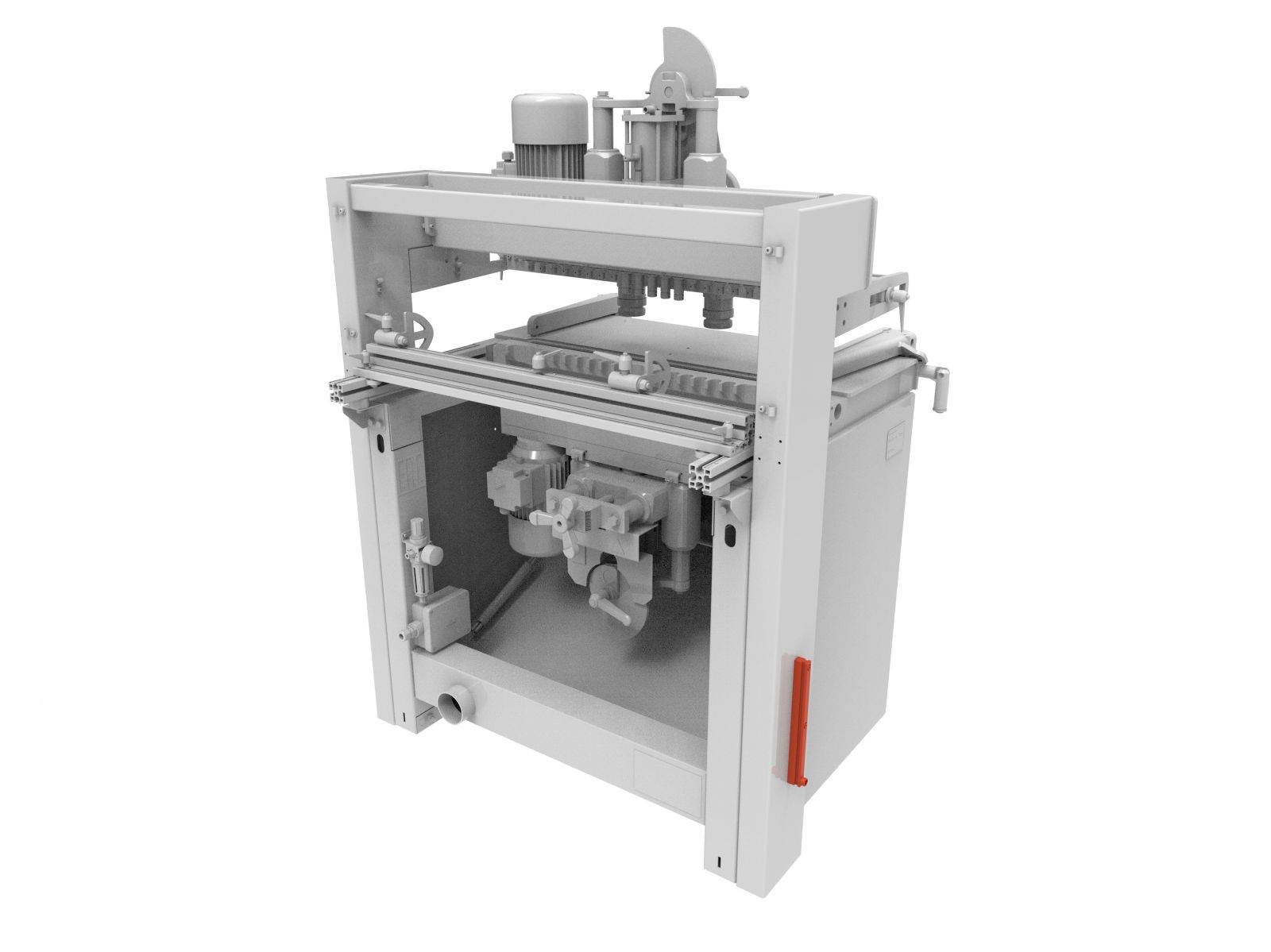

For combined vertical and horizontal drilling on panels and solid wood, for general furniture applications.
- Compact only 1 mq
- Halves working time compared to a traditional single-head boring machine
Over 30 years of experience with more than 20,000 machines produced. 100% Made in Italy.High standards of quality and reliability thanks to lean manufacturing – Toyota System.
Quick-change spindle with 32 mm center distance. Pneumatic tilting of the horizontal head from 0° to 90°. Fixed vertical head for top-down drilling. Large steel working table. Ready for dust extraction system. Machine built in compliance with CE standards.
N..1 tilting head 0°-90° for horizontal and upward vertical drilling (T1)
N.1 fixed boring head for top-down drilling ( T2)
N.2 motors - 2 HP each
N.2 patented safety clamping units
N.10 quick-change chucks ( n.5 for each head)
N.2 tilting cast-iron table fences, adjustable on a metric scale with magnify glass
Adjustable drill-bit - to - table distance with numeric counter
Patented Spyral System for fast drilling depth adjustment
Packaging - wrapped on a pallet
Ready for dust extraction system
Manufactured according to EC standards

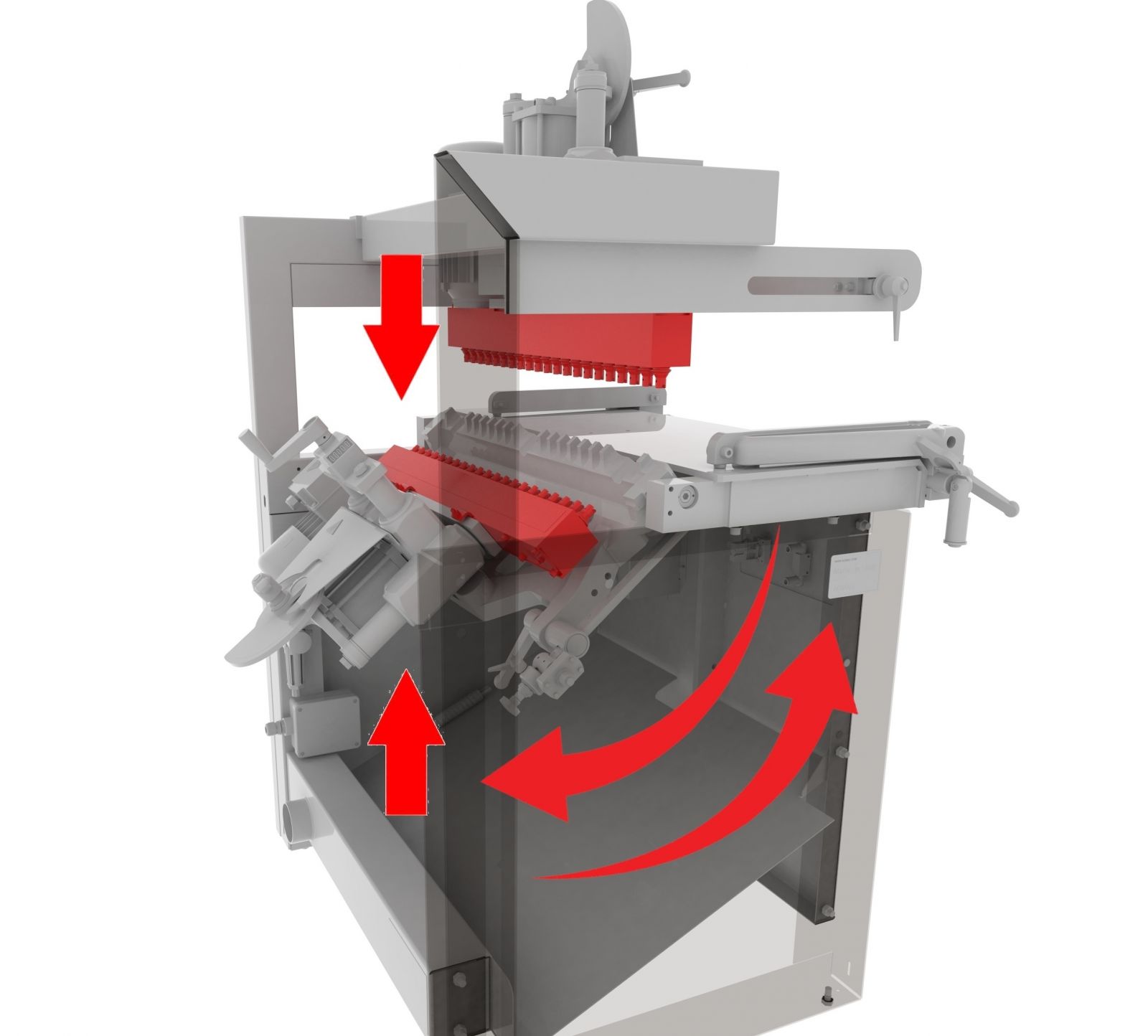

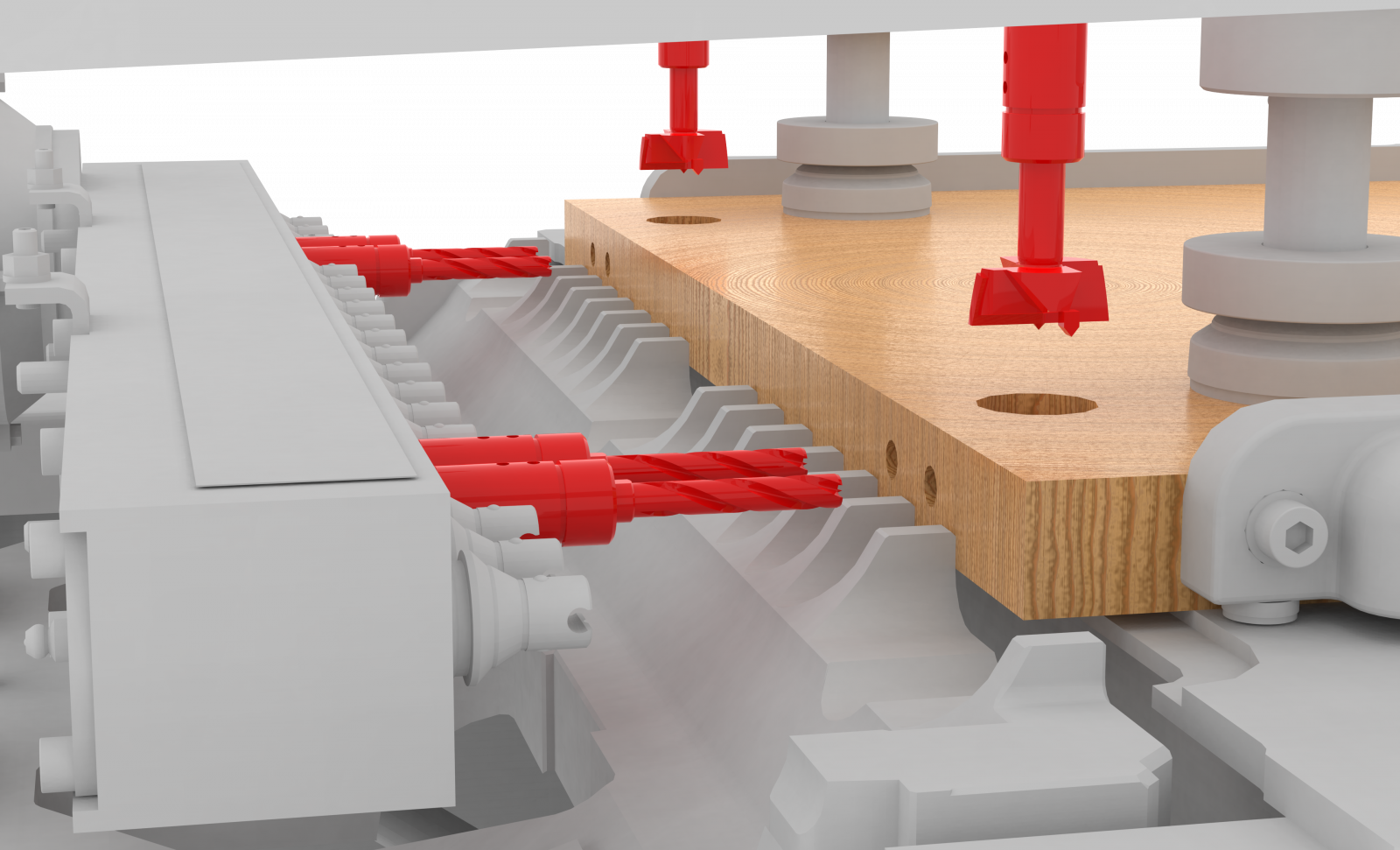

Combined vertical and horizontal drilling in a single working cycle with no additional adjustments. Save time and increase processing accuracy

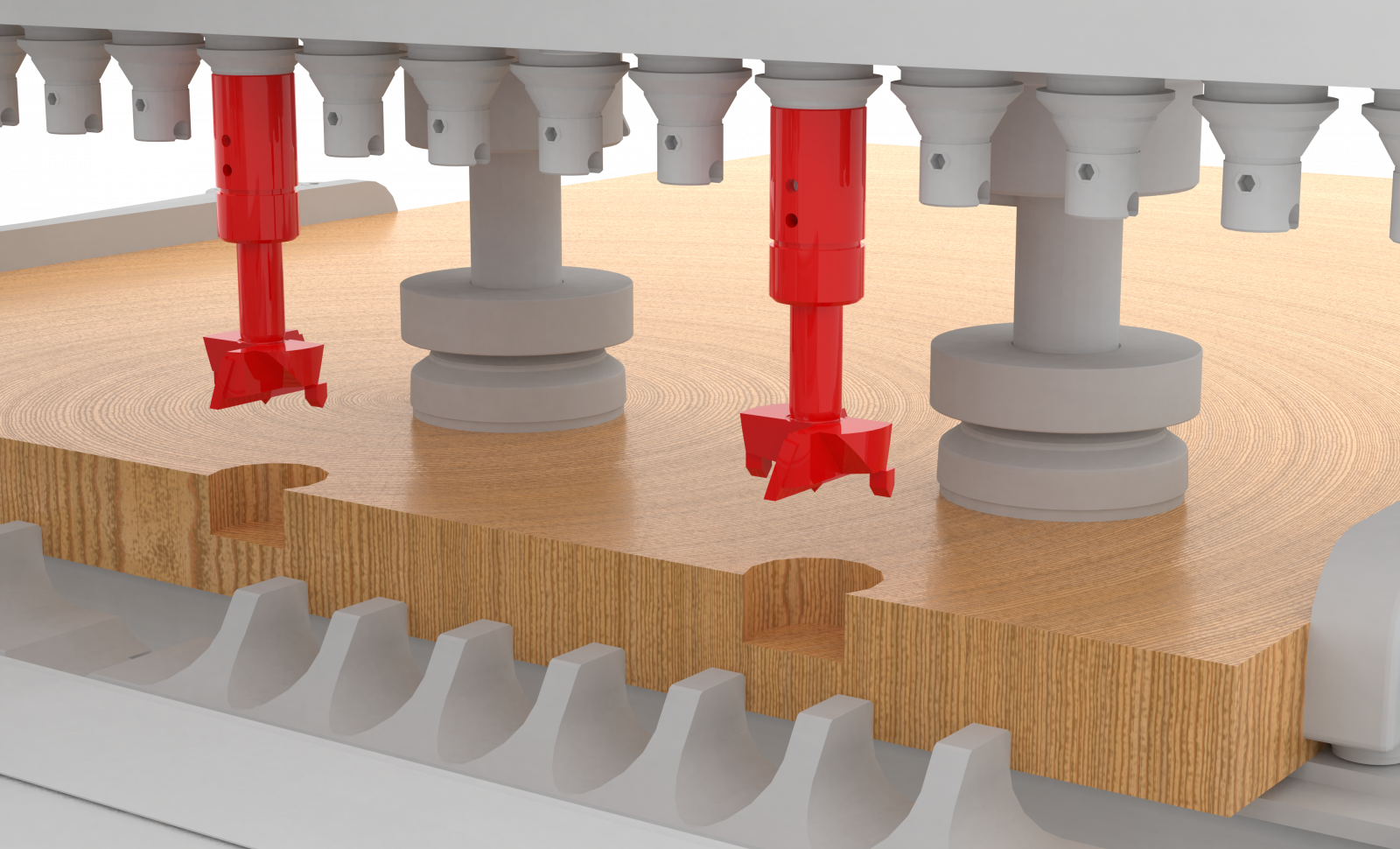

Thanks to the vertical top-down boring unit, you can perform blind and through holes instantly, without
the need for positioning stops or additional references — with full visual control during the operation.
The combination of multiple machining types, over two independent drilling heads, makes this machine extremely flexible and versatile
Setting the depth and height of both drilling heads is extremely quick and easy thanks to the patented Spyral
System and the digital counters.Accuracy is guaranteed.
The worktable stops adjust on a metric scale with lens and nonius, a precise reference that ensures perfect parallel
alignment for all operations and perfect panel joints

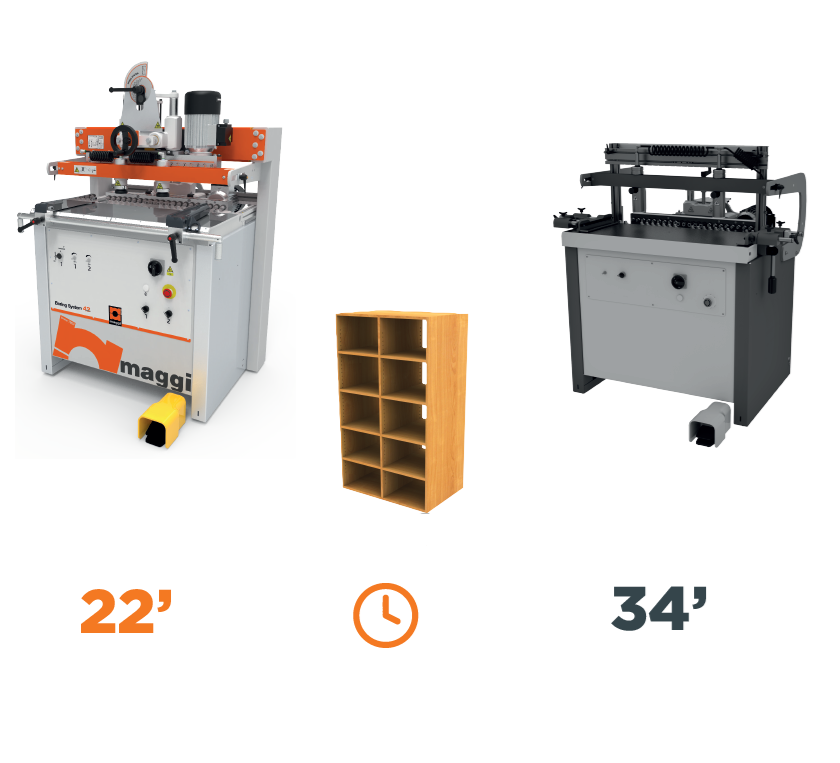

Thanks to its unique configuration, the BS 42 speeds up and improves drilling accuracy, delivering greater productivity compared to a traditional single-head boring machine
Thanks to the 640 mm interaxis and the large working table, You can process 2 panels having 316 mm width at the same time.
You can process 3000 mm - long sides in 5 working cycles.
Thanks to the two aluminium fences 1500x 80 mm with 4 reference stops, (optional).
Made of steel, built to last, eco-friendly, rust-resistant powder coating. Boring heads are made of aluminium, while internal gears are made of rectified steel.
Thanks to the two aluminium fences 1500x 80 mm with 4 reference stops, (optional).
The comb of the horizontal head ( T1) has been designed so as to have 3 fixed positions where You can use cutter-drill bits of large diameter, without any further adjustment of the boring head.
You can apply the boring aggregates of the available typologies ( BLUM, HETTICH, SALICE, GRASS) on the horizontal head (T1) to drill the three hinge holes in one working cycle.
| Spindles | N.42 ( 21 + 21) |
|---|---|
| Left and right spindles | N. 10 sx - N. 11 dx (cad.) |
| Spindle interaxis | 32 mm |
| Total interaxis | 640 mm |
| Max. tool diameter | 40 mm ( 10 mm T2 débouchant) |
| Max. boring depth | 65 mm |
| Max boring height | 55 mm (T1 ) / 50 mm (T2) |
| Height of working table | 860 mm |
| Dimensions of the working table | 885 x 349,5 mm |
| Max. panel thickness (optional*) | 60 mm |
| Max. panel dimensions | 900 x 3000 |
| Motor | HP 2 / KW 1,5 - RPM 2800 ( X 2 ) |
| Stepper motor 1 | ---------------------------- |
| Stepper motor 2 | ----------------------------------- |
| Linear actuator | --------------------------------------- |
| Standard pneumatic pressure | BAR 6/8 |
| Air consumption per working cycle | 10 NL |
| Dust collection hood diameter | 80 mm |

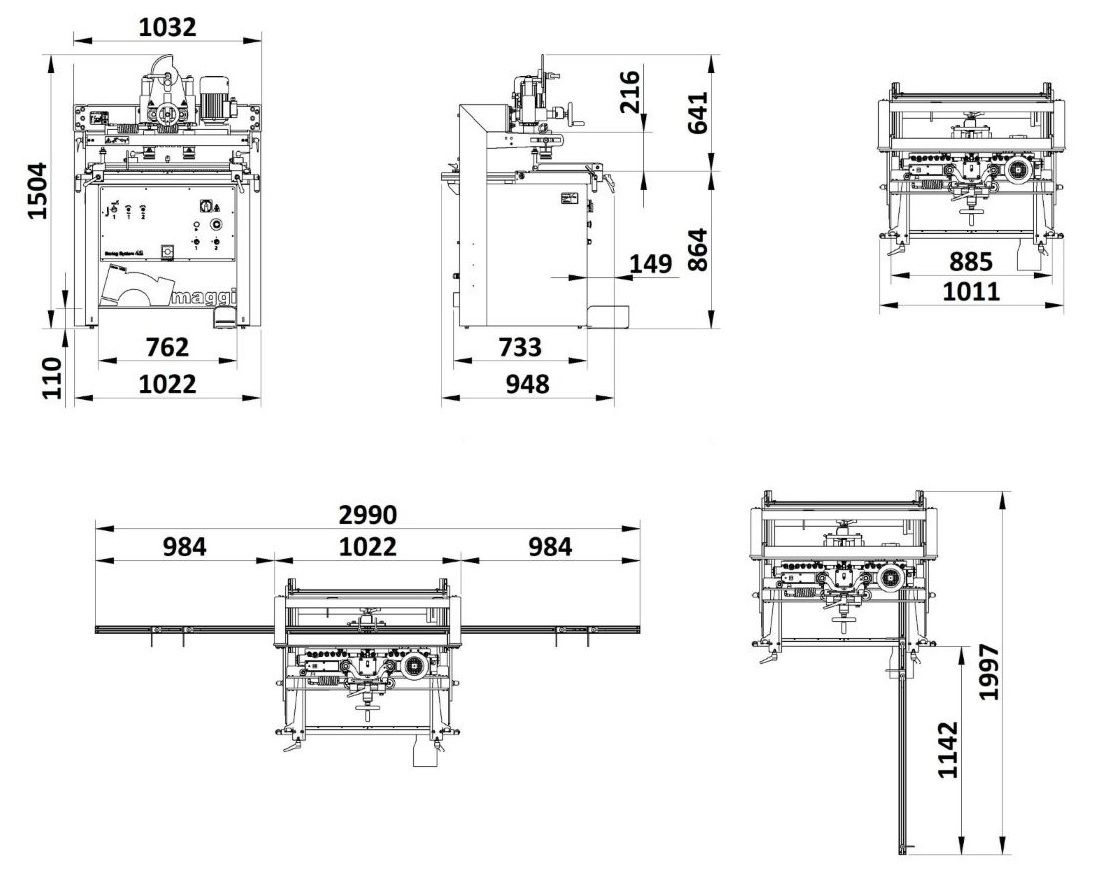

| Overall dimensions - net weight: | 1070 X 1035 X 1505 H mm |
| Package dimensions (machine) | 1150 x 950 x 1630 mm |
| Rod packaging size | aste non incluse |
| Gross weight | Kg 396 |
| Net weight | Kg 366 |

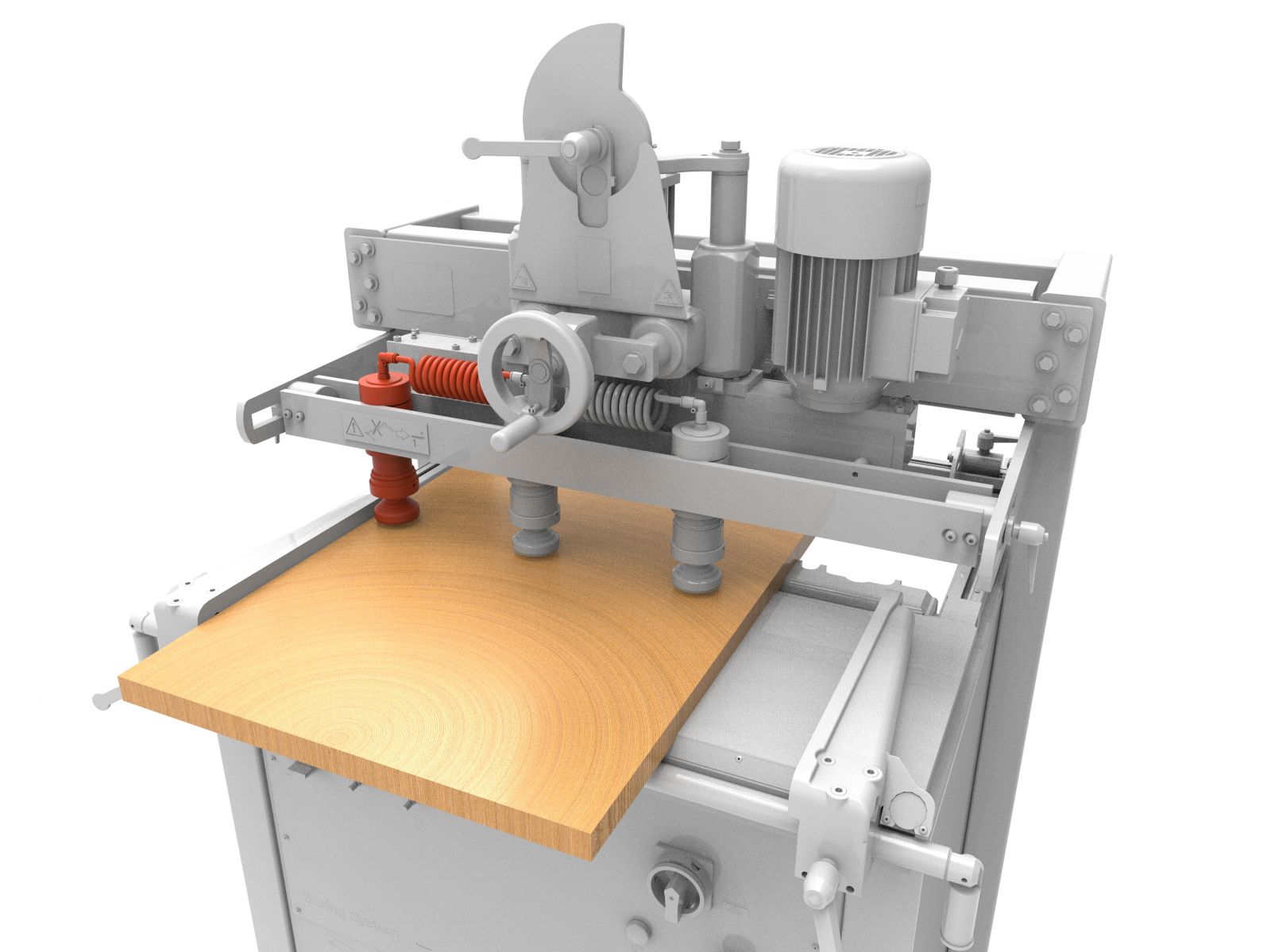

For an even quicker and more accurate set up
CODE: 26028819

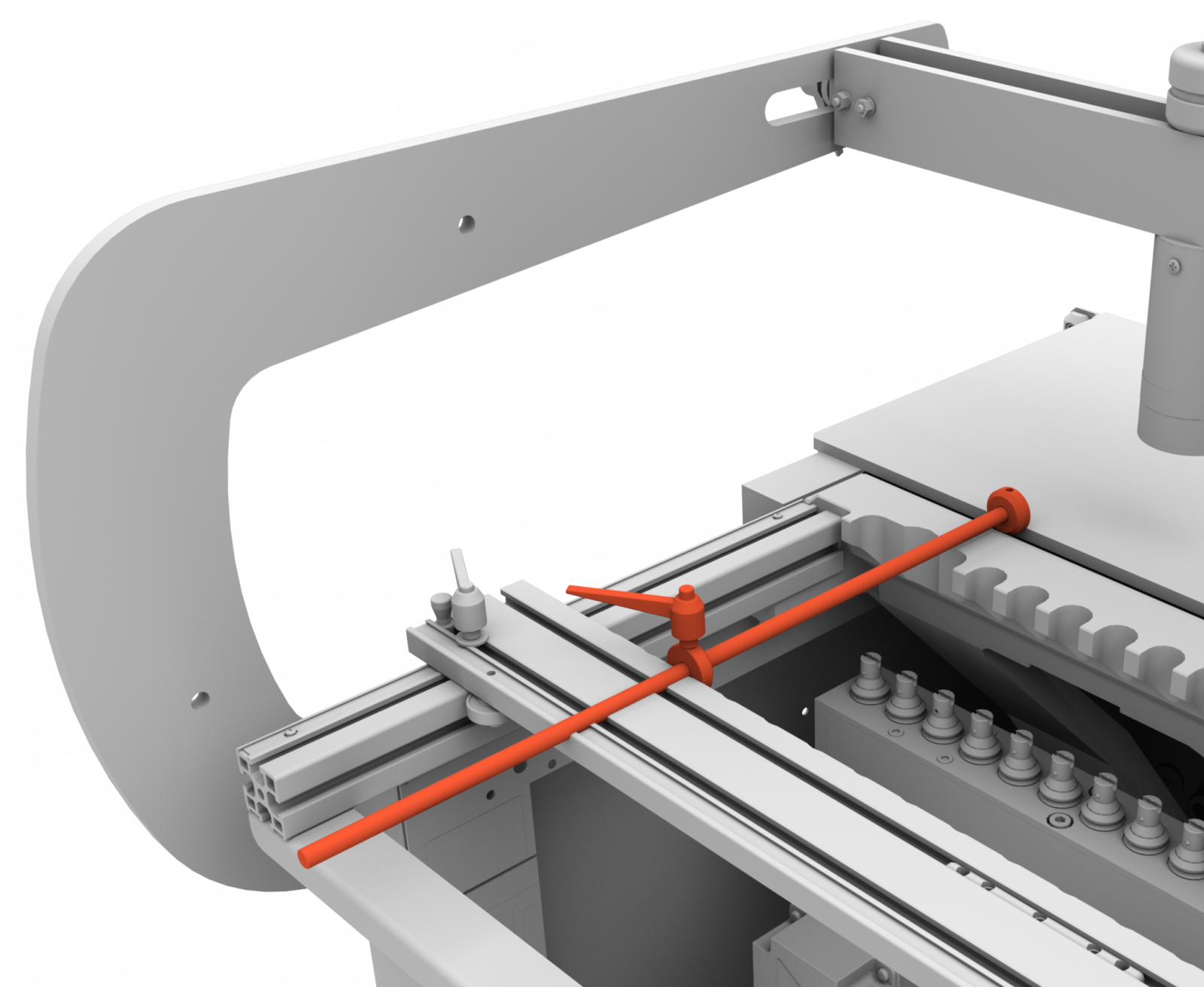

For a quick and accurate set-up of the rear fence
Ref. gauge for rear fence parallelism ( 500 mm)
CODE: 26000061
Rigid carton box with lid made of wood (115x95x163h - Kg 15 )
Highly recommended for long routes, either by land or sea, for a safer transit ( option to be specified at the order)
CODE: 26450950

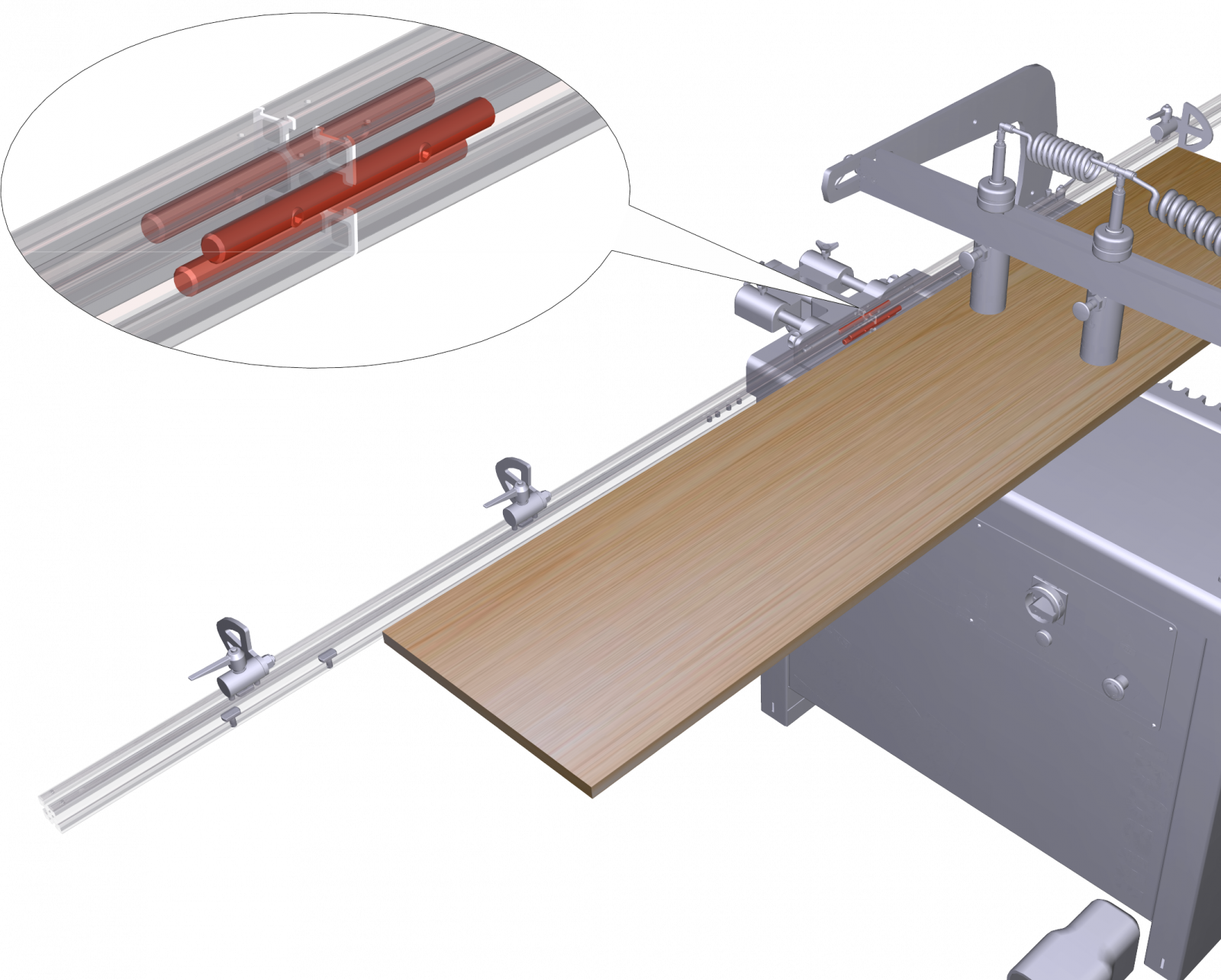

Allows You to connect the two 1,5 mt fences ( option) to obtain one single 3mt long fence
Kit to join the two aluminium fences (1500 mm + 1500 mm)
CODE:

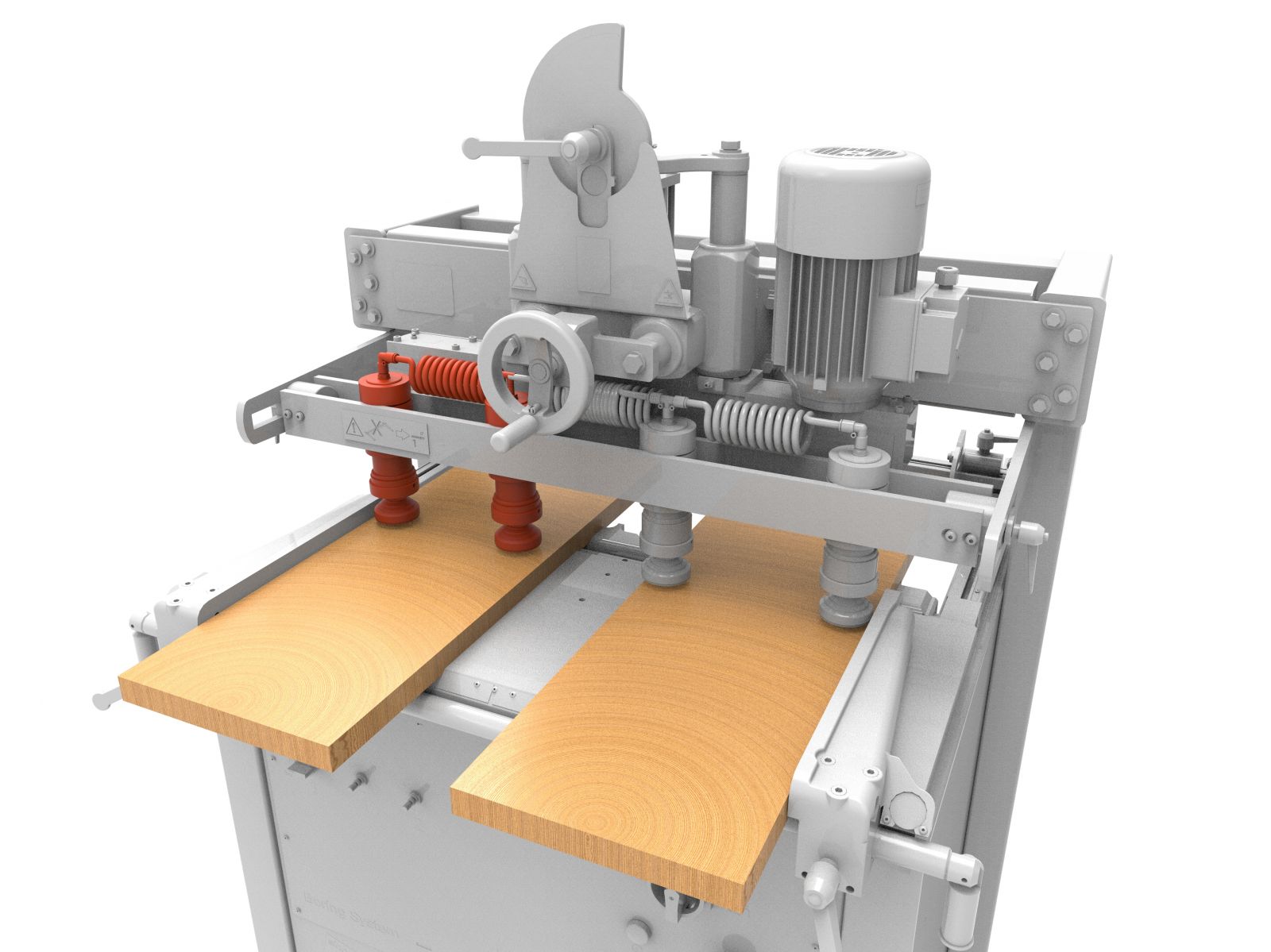

To considerably increase the hold-down pressure on the working panel and consequently its stability during the drilling process. It allows to process two small panels at a time
N.2 additional hold-down clamps
CODE: 26206533

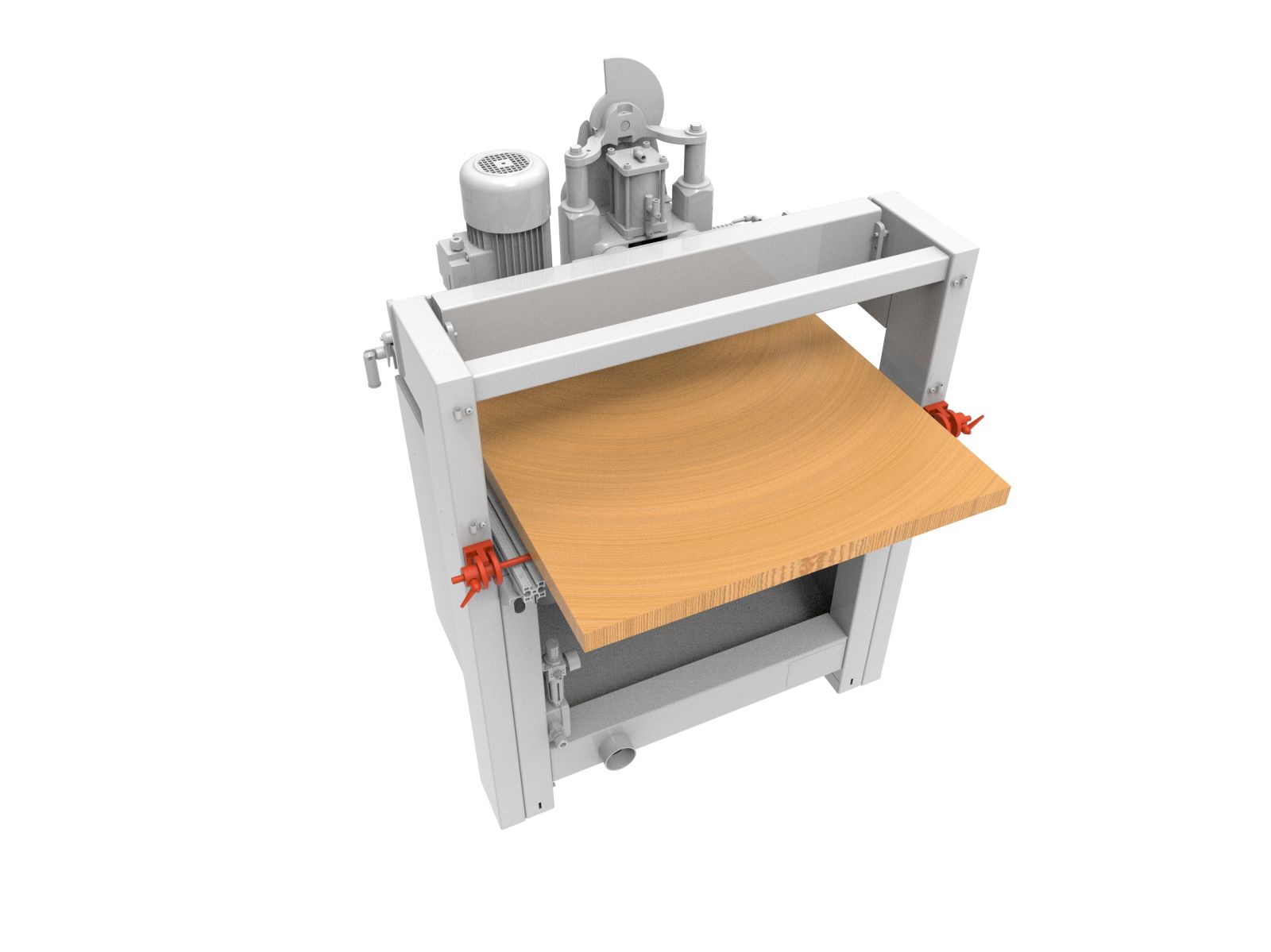

To increase the hold-down pressure on the working panel and consequently its stability during the drilling process
N.1 additional hold-down clamp
CODE: 26206532

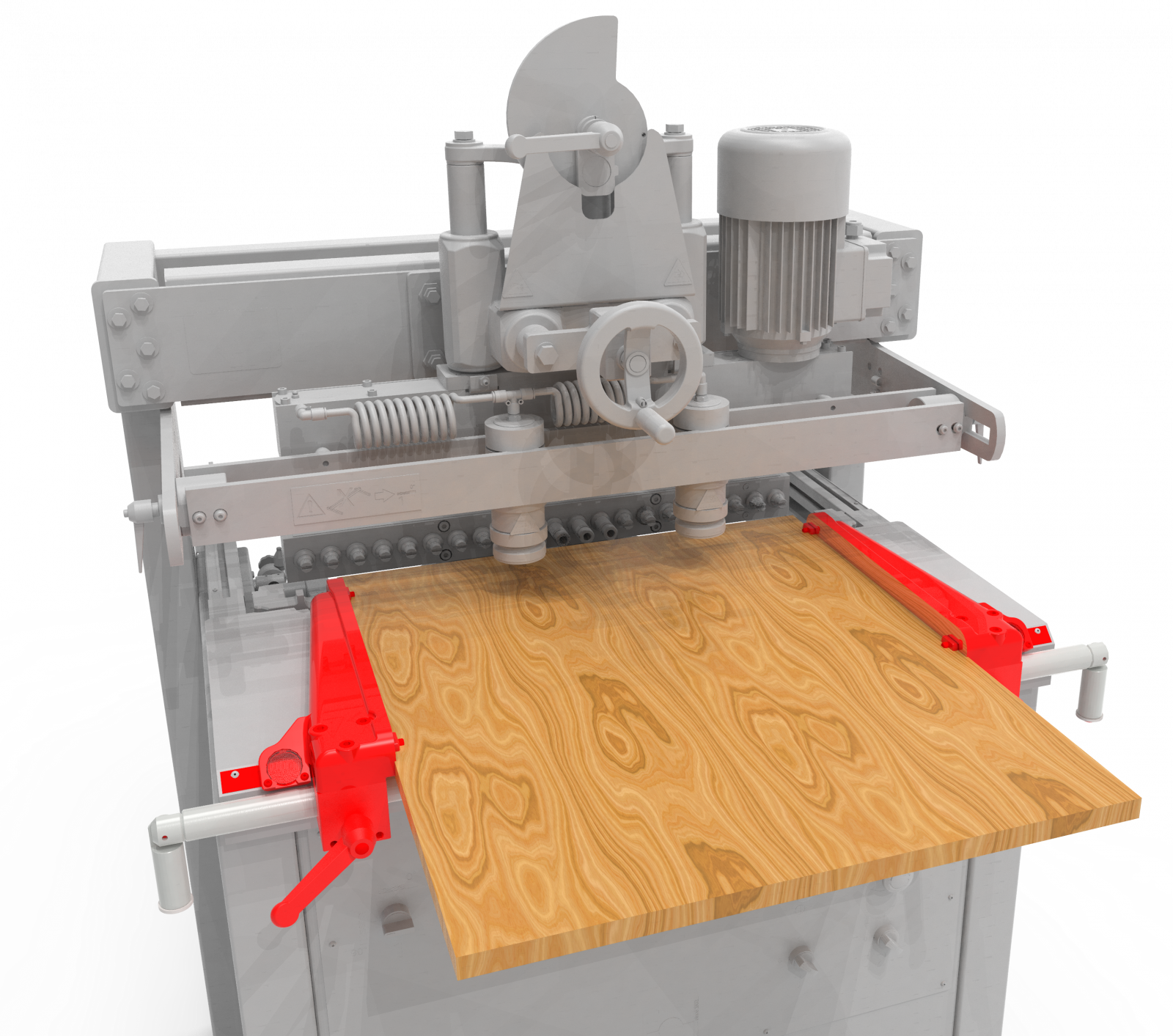

For a quick and accurate adjustment of the two side fences on the working table, to obtain the perfect parallelism of the drilling process.
Gauge for the symmetry of the side fences ( only for BS 21 PRESTIGE and BS 42)
CODE: 26200069

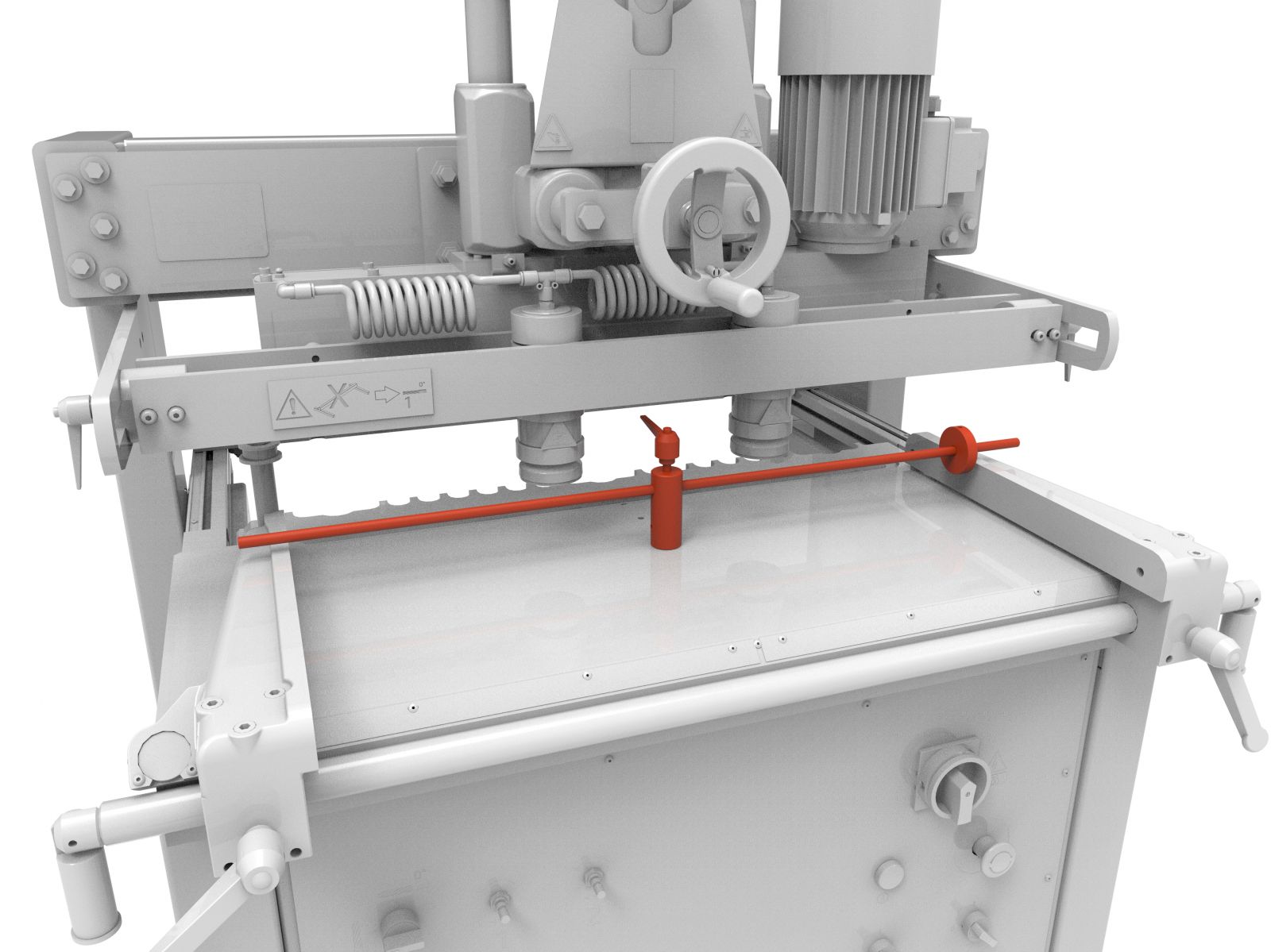

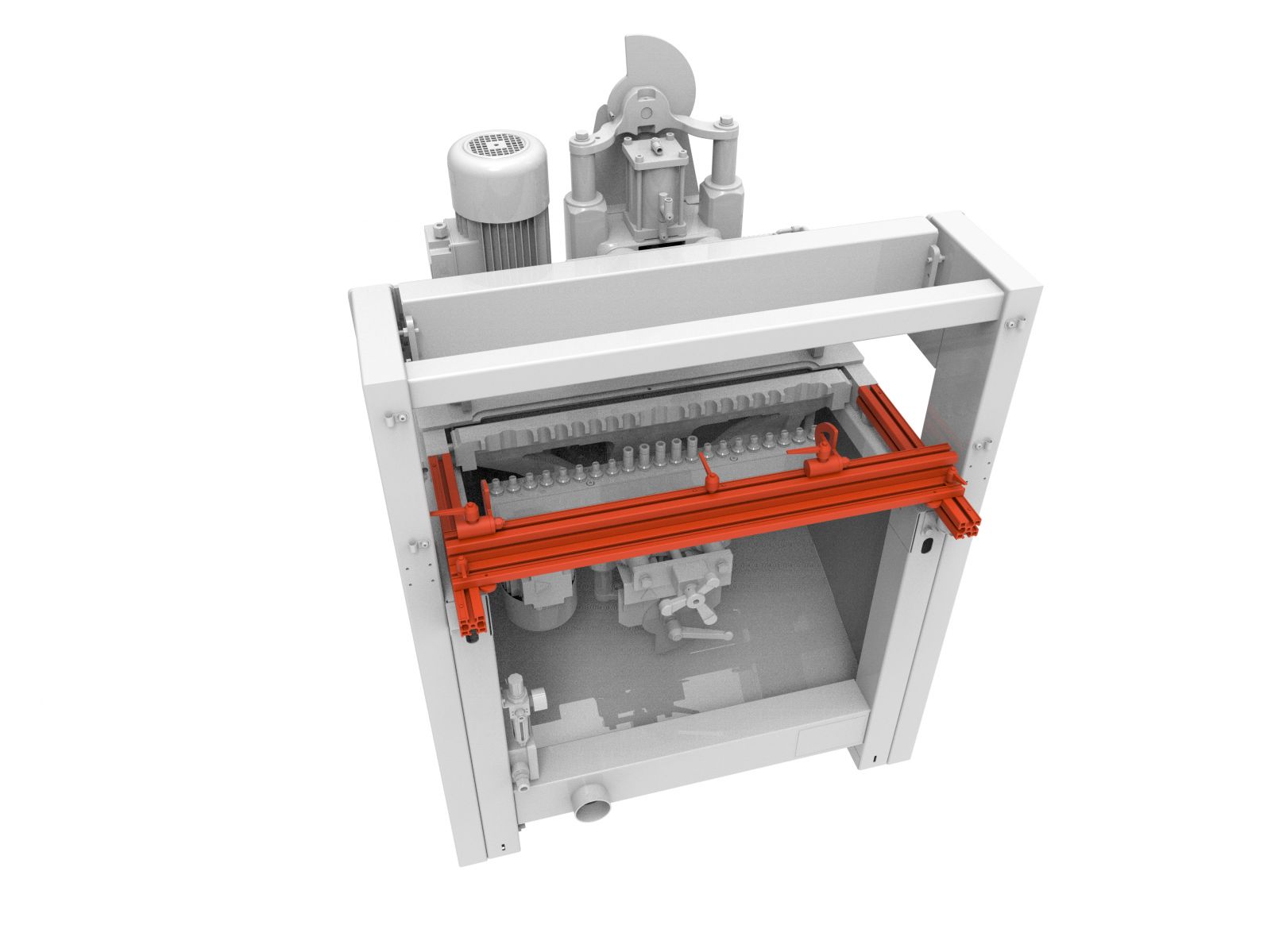

The rear fence allows the transverse drilling on the panel, up to a maximum of 300 mm, without the need for the additional long fence.
It serves as a constant reference for drilling along the entire lenght of the working table
CODE: 26450601

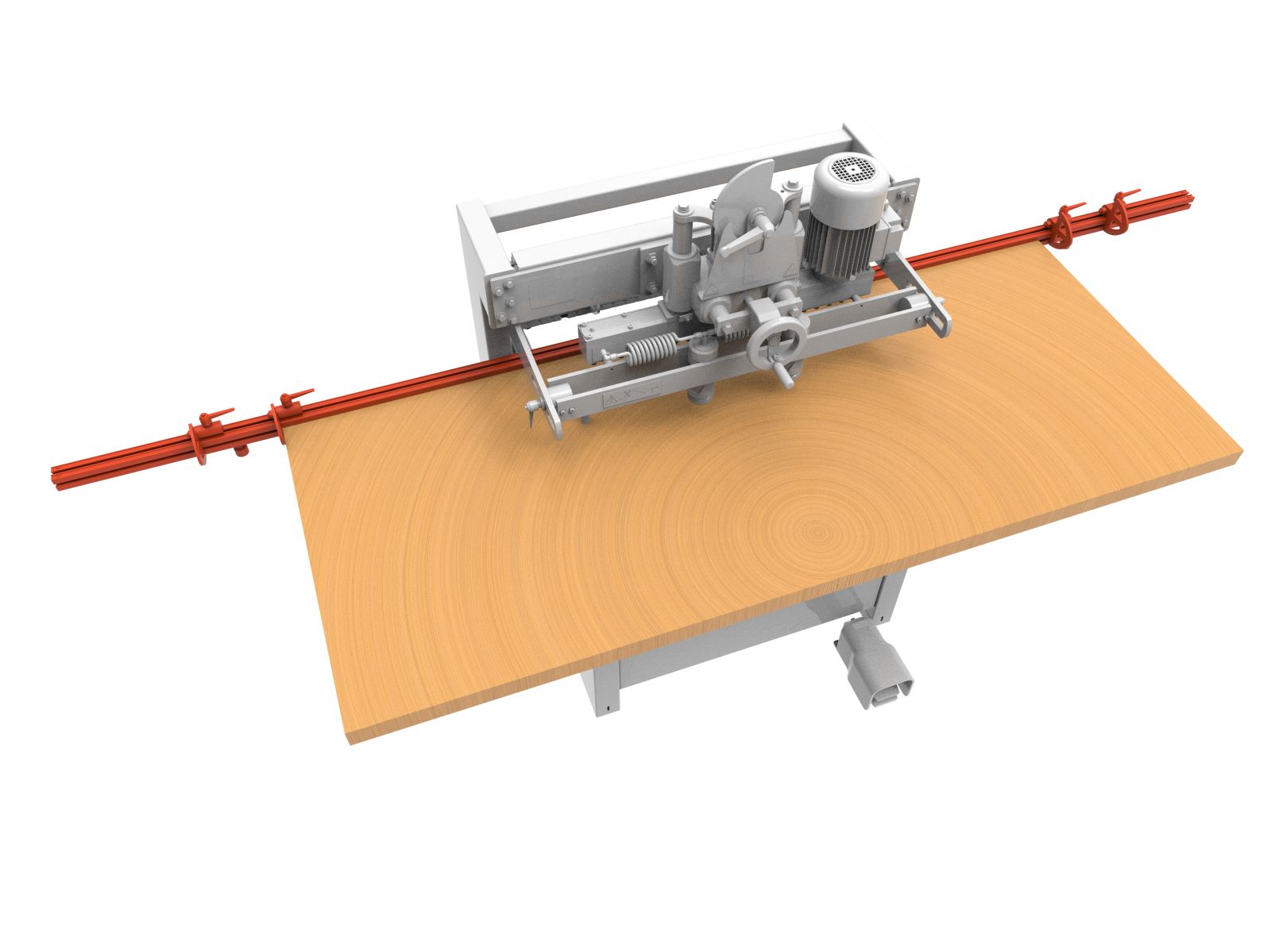

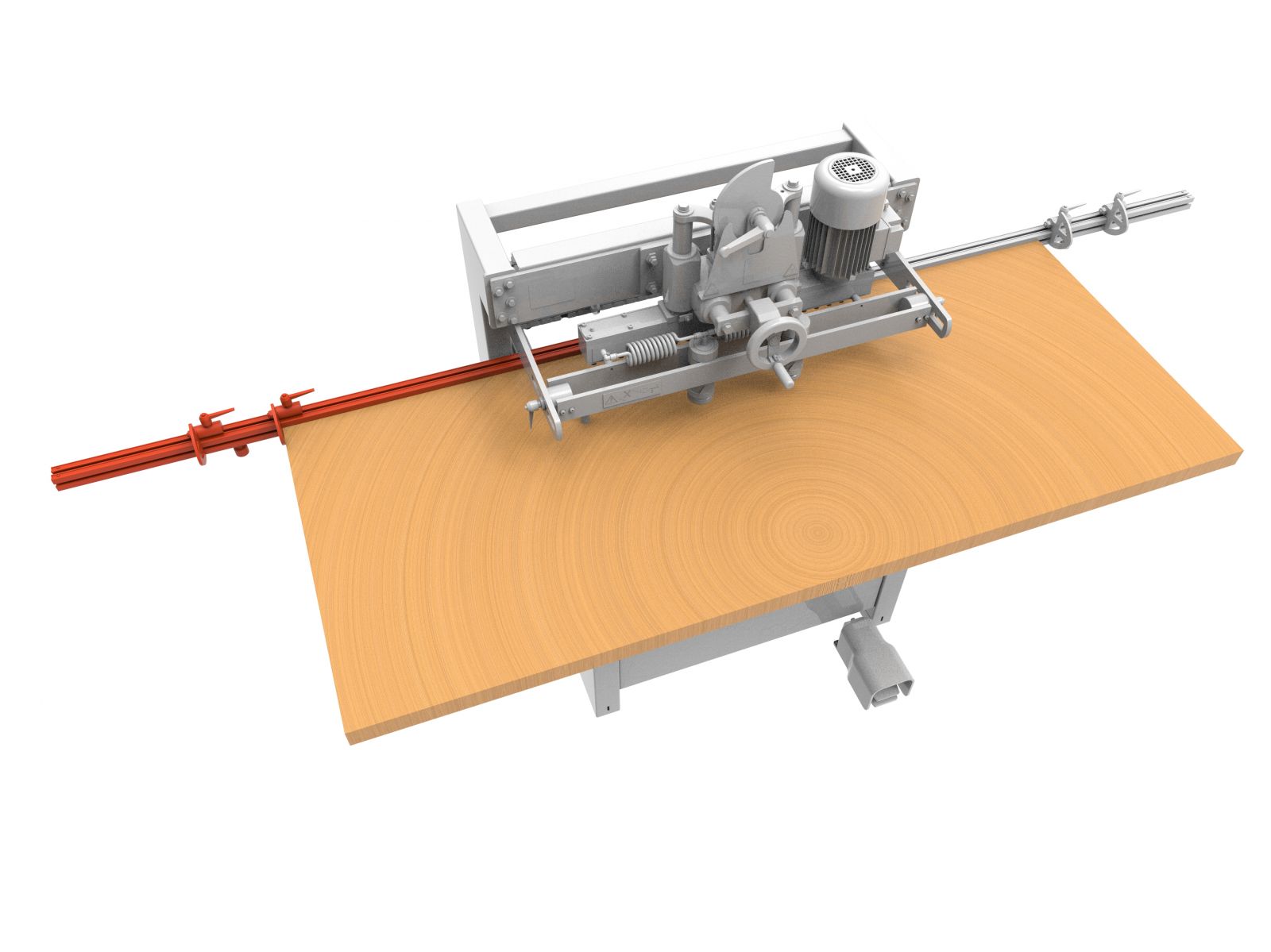

For the quick and accurate positioning of the long panels
CODE: 26028813
For the quick and accurate positioning of the long panels
CODE: 26028814
It keeps long working panels aligned for a more accurate drilling process.
n.2 ref. stops to match the long panel during transversal drilling
CODE: 26450038
To keep the rear fence always close at hand ( rear fence is not included)
CODE: 26450041

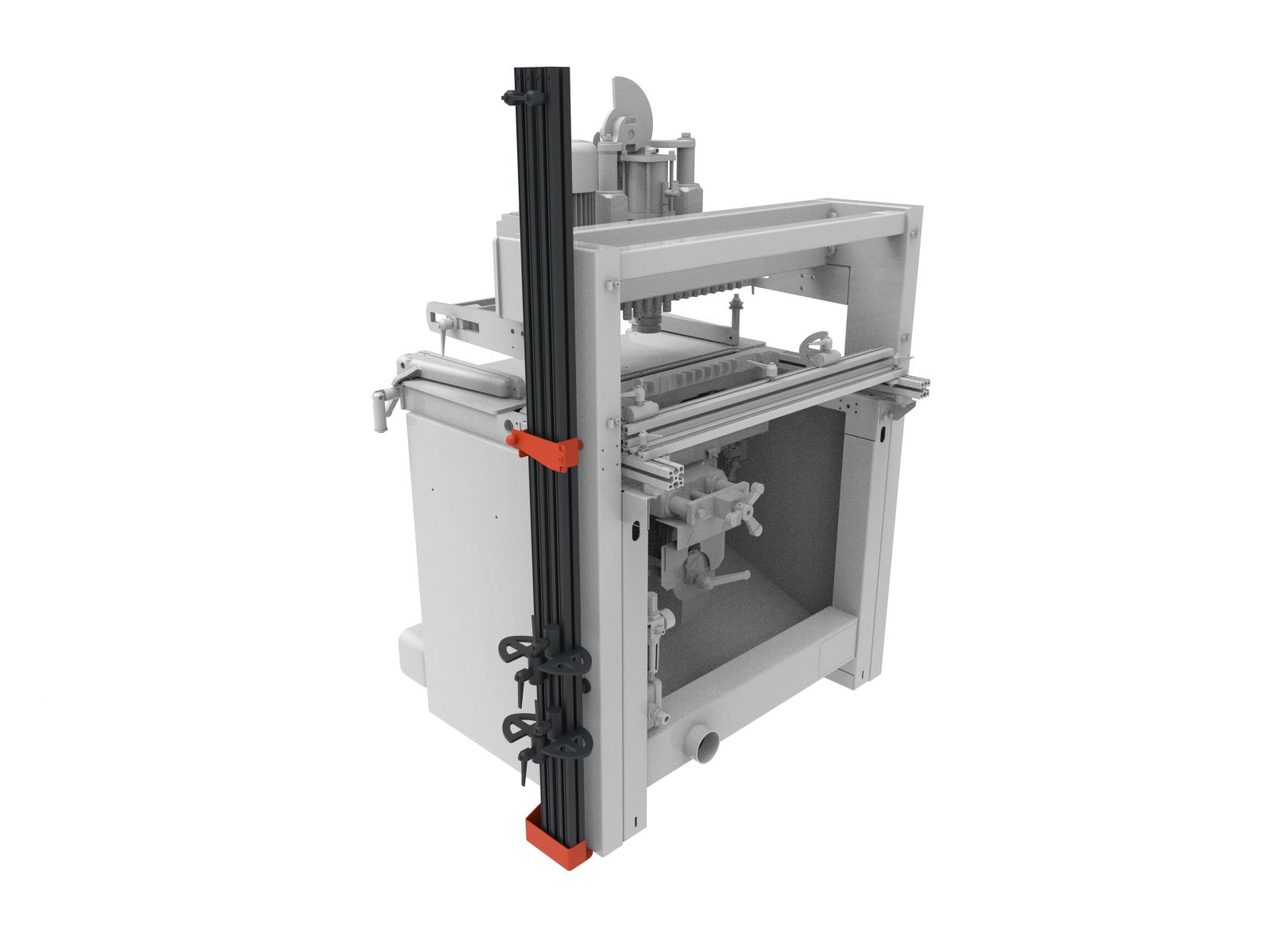

To keep the long fences always close at hand ( fences are not included)
CODE: 26450040

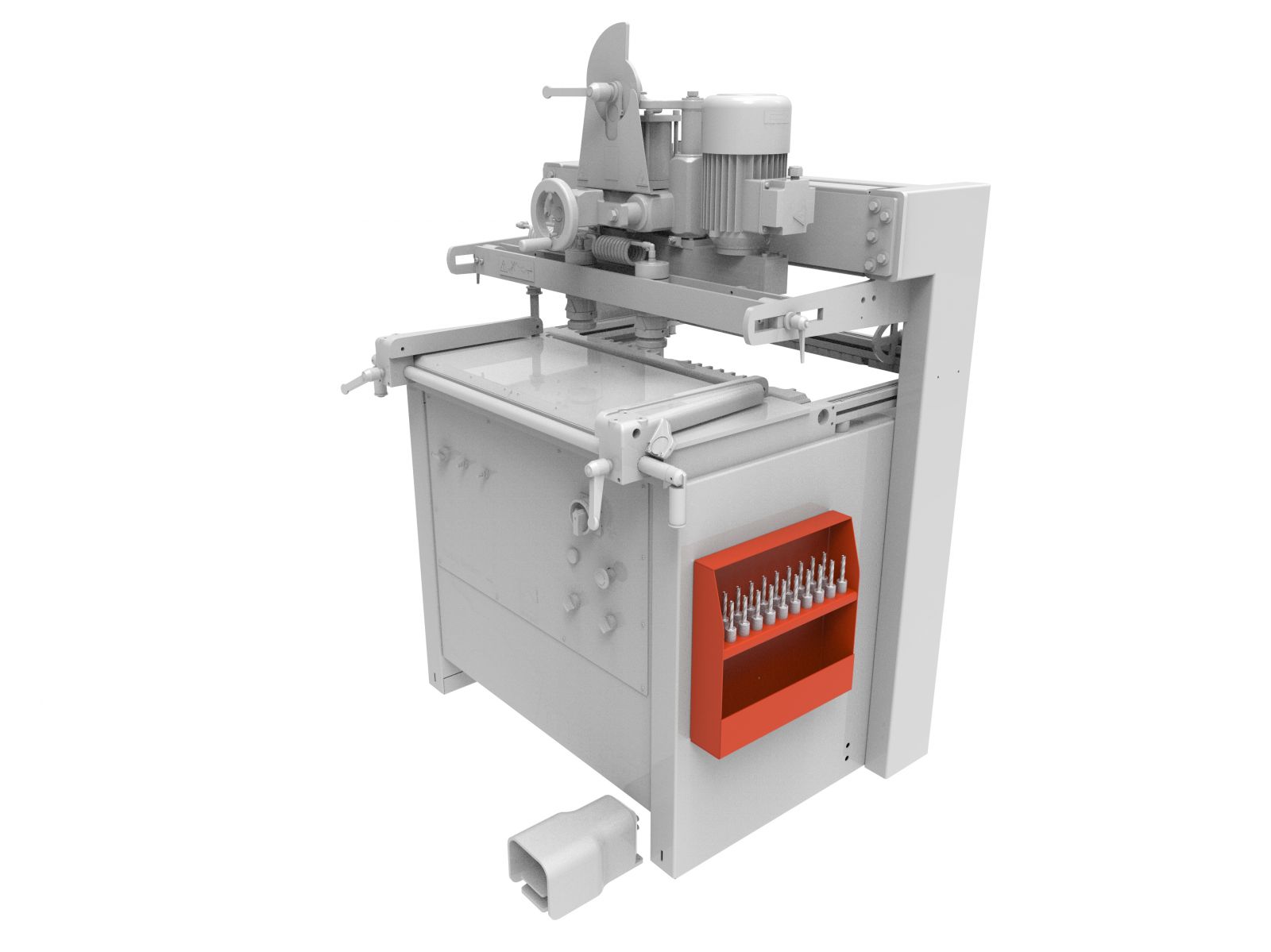

To keep Your drill-bits and tools tidy and always close at hand
CODE: 26000014
Electrical standards abiding by the Canadian wiring regulations ( option to be specified at the order)
CODE:
To have the machine working in small handcraft shops having an electric system running on 220 Vlts ( option to be specified at the order)
CODE:
For the quick and accurate adjustment of the ref. stops along the fence, when carrying out the line drilling process
Ref. gauge for the quick set-up of the ref. stops along the fence (640 mm)
CODE: 26200070
A selection of drill-bits by our technicians for a professional approach
CODE: 26054750
To drill the holes for the "Cabineo" connectors in one single working cycle
Drilling aggregate for "Cabineo" connectors, including 3 drill-bits 15 mm diam.
CODE: 26845820
Recommended drill-bit set for drilling aggregate for hinges, made up of n. 2 left-handed drill-bits 8mm diameter and n.1 right-handed drill-bit 35 mm diameter
Tool set made up of 3 drill-bits for hinges
CODE: 26845821
To drill the three hinge holes in one single working cycle
DRILL-BITS NOT INCLUDED
CODE: 00008393
To drill the three hinge holes in one single working cycle
DRILL-BITS NOT INCLUDED
CODE: 00008392
To drill the three hinge holes in one single working cycle
DRILL-BITS NOT INCLUDED
CODE: 00008391
To drill the three hinge holes in one single working cycle
DRILL-BITS NOT INCLUDED
CODE: 00008395

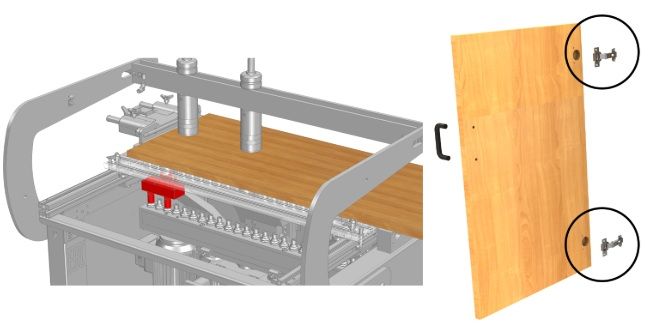

To carry out the line vertical drilling process very quickly and accurately, without using the long fence. It is highly recommended to have this device both sides of the machine to process panels longer than 2 mt
Ref. pin for line drilling (1 piece)
CODE: 29900100
To drill mouldings and laths
CODE: 26000069 A / 26000069 B

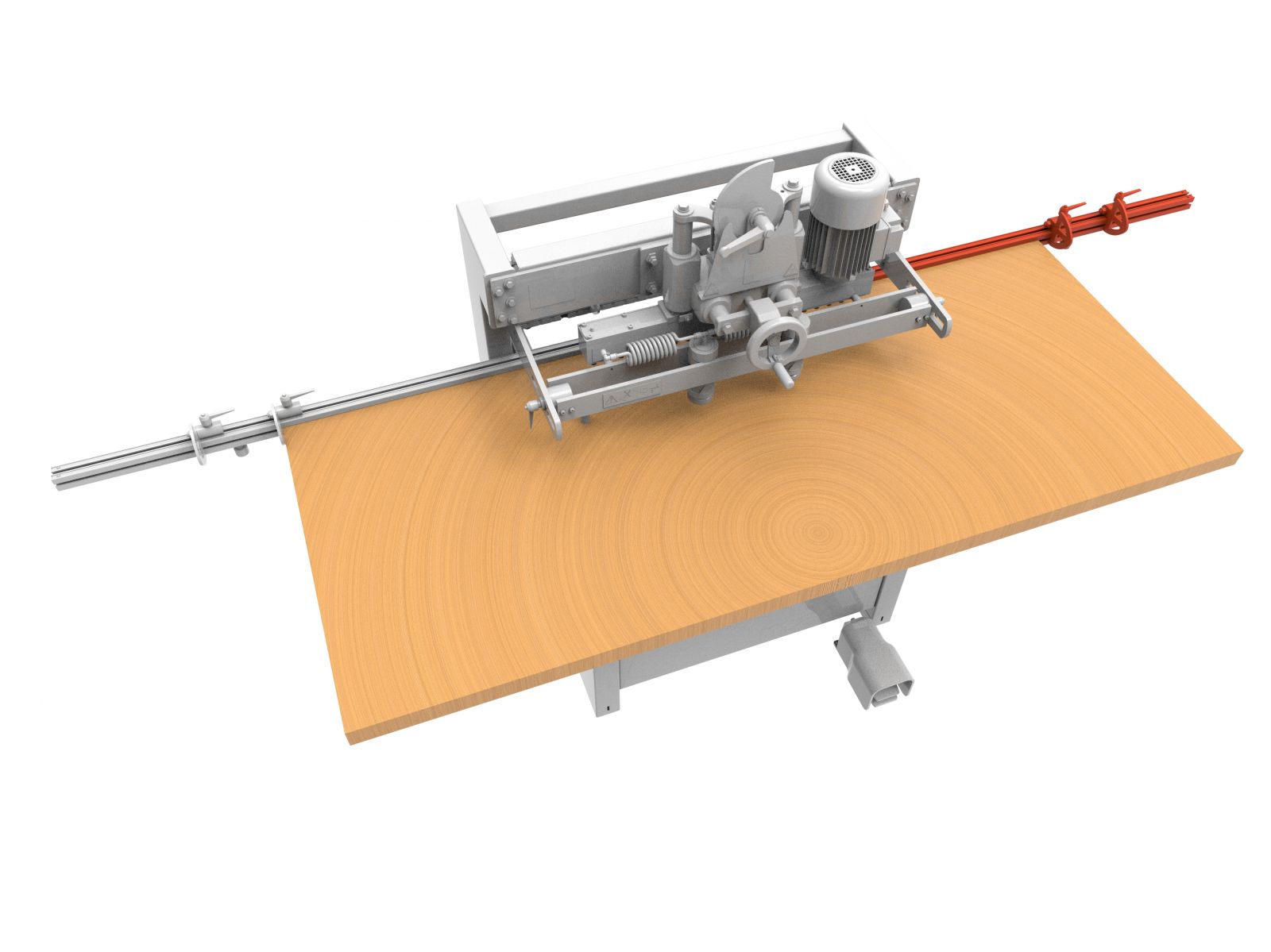

To increase by 1 mt the length of the 2 standard fences (1,5 mt each) and carry out the in line drilling process on long panels
CODE: 29970302
By using these quick-change tool-holders, You can mount Your drill-bits on the boring head in just "one click"
CODE: 36000061
To make the handling of large-size panels easier for the operator
Independent idle-roller table 500x1500 mm ( idle-roller surface only) 562x1540 mm (incl.frame), adjustable height from 770 to 1.175 mm, max. capacity 45 Kg/m. It can be installed both sides of the machine
CODE: 27304100
Attached is the complete list of recommended spare parts for the above stated single-head boring machines ...
For pricing information, please contact our spare parts office (service@maggi-technology.com)."
Please refer to the attached table for the available types of hinge aggregates ...
Please refer to the attached drawings for the requested information...
The hinge drilling aggregates attach to the spindles on the head with a simple click, just like regular drill bits.
Please refer to the attached image...
Please refer to the attached documentation...
The quick-change chucks (code 36000061) are mechanical tool holders that allow for the rapid mounting and removal of drill bits on the head of the boring machine, without the need for additional tools, just a click!
No, these features are exclusive to the BORING SYSTEM 21 TECHNOLOGY model.
Yes, the reference pins can be applied on both sides of the machine and used both individually and simultaneously
Yes, Maggi semi-automatic boring machines, both single-head and multi-head, are also available in the single-phase motor format.
Please, refer to the enclosures ...
In traditional single-spindle drilling machines (BORING SYSTEM 21 PRESTIGE, BS 23, BS 29, and BS 35), the drilling angle is set manually by adjusting a reference stop on a metric rod, as shown in the video (at minute 4:55). In the BORING SYSTEM 21 TECHNOLOGY model, however, the drilling angle is set electronically via a touch-screen display (video at minute 2:46). Please refer to the videos of both types of machines for further reference."
The reference pin is not just a generic alternative to the bar; in the case of processing (inline vertical drilling) panels longer than 2 meters, it becomes ESSENTIAL to complete the work!
Look at the attached drawings; as you can see, the third and final part of the operation cannot be completed with just the bar because the profile is not long enough to provide the necessary references. Furthermore, the reference pin is always to be preferred over the bar and should be recommended to the customer when precision is an essential requirement!
The maximum usable distance is 300 mm and corresponds to the maximum stroke of the rear stop as seen in the attached image...
Maggi boring machines can work with all types of panels (MDF, particleboard, plywood, hardwood...) as well as solid wood.
For working with solid wood, we recommend the BS 35 model, which is equipped with two motors and therefore has greater drilling power.
The HINGE AGGREGATE - accessory (see available types in the attachment) is used to create the 3 holes necessary for the application of a hinge in a single work cycle.
MOUNTING The mounting is easy and fast, you just need to click the hinge aggregate onto the quick-change bushings (accessory) present on the head of the boring machinel, as shown in image A. The hinge aggregate can be mounted in any position on the head, taking into account the rotation direction of each spindle (red spindle - left rotation / black spindle - right rotation). If, for example, the central spindle of the hinge aggregate (which is the one that transmits the rotation to the bits) will be positioned on a BLACK spindle (right rotation), then the central bit of the head (35 mm diameter bit) will rotate to the right, and consequently the two smaller side bits will rotate to the left, and vice versa in the opposite case (see attached image B).
ADJUSTMENT When making the holes for the hinge with the aggregate on a single-head boring machine, it is essential to carry out a careful adjustment and use specific bits with a maximum length of 28.5 mm to AVOID COLLISIONS between the hinge-aggregate itself and the head unit and/or with the panel to be machined!
The following are all the necessary instructions for optimal adjustment:
The rotation speed of the bits is 2800 RPM (revolutions per minute), which is the same as the motor speed, and it cannot be adjusted; however, it is possible to adjust the forward speed of the head, and therefore the entry speed of the bits into the panel, using a specific control located on the front of the machine.
In the range of Maggi single-head drills, there are two types of fences on the tabletop:
For the BS 21 PRESTIGE, it has cast iron folding fences with manual adjustment on a metric scale bar with a magnify glass. The reference point for drilling is SINGLE and is represented by the central spindle on the head or zero point. The perfect parallelism of the fences is obtained using a special "compass" device (ACCESSORY).
For all other single-head drills: BS 21 TECHNOLOGY, BS 23, BS 29, BS 35, they have cast iron removable fences with manual adjustment on numerical counters. In this case, there are two reference points for drilling: the center of the first and last spindle. The setting of the two fences via high precision numerical counters always ensures perfect parallelism, without the need for additional adjustments.
See the attached image for more clarity.
See the attached instructions and images that refer to the semi-automatic single-head boring machines models with manual adjustment of drilling parameters: BS 21 PRESTIGE / BS 23 / 29 / 35
As for the BS 21 TECHNOLOGY, the adjustment of height, angle and drilling depth is ELECTRONIC via a TOUCH-SCREEN.
The maximum usable distance between the shoulders of the single-head drill for the LONGITUDINAL passage of the panel varies by model. Here are the complete details, with an example image of the machining process attached...
BORING SYSTEM 21 PRESTIGE: 897 mm
BORING SYSTEM 21 TECHNOLOGY: 897 mm
BORING SYSTEM 23: 961 mm
BORING SYSTEM 29: 1,153 mm
BORING SYSTEM 35: 1,345 mm
See the attached drawings ...
The hinge head units are offered by Maggi as accessories for their single-head and 3-head drills to allow the creation of the 3 holes for hinge application in a single drilling cycle. There are various types of head unit (see attached image), for each of which we recommend using specific 38.5 mm length drill bits (see attached image) - a 35 mm diameter center bit and 8 or 10 mm diameter side bits.
The hinge head unit can be installed on any spindle of the drill head, whether it rotates clockwise or counterclockwise, so the rotation direction of the bits is not a limiting factor. For ease of use, Maggi offers the 35 mm diameter center bit with a CLOCKWISE rotation and the side bits with a COUNTERCLOCKWISE rotation. The 3 bits can be purchased separately or as a kit.
The drill bit length to use, in order to reach the maximum drilling depth (65 mm) with the Maggi BORING SYSTEM single-head boring machine, is 85 mm.
You can verify this data by reading the information on the SPIRAL SYSTEM device, which allows for quick setting of the drilling depth on all Maggi single-head boring machines. See the attached photo.
For the lubrication of the heads of the multi-spindle boring machines , we recommend using EP 2 type grease. We advise checking the optimal lubrication level every 500 hours of operation.
Attached are instructions and images to correctly perform the lubrication of the drilling head of the multi-spindle boring machines ...
At the time of order, it is possible to request a motor with a different voltage from the standard one (400V - 50 Hz - 3PH), or in single-phase version (only for products that allow it), but it is not possible to have a more powerful motor."
The attached image shows the necessary workspace ...
View the attached video...
The hinge aggregates that we offer as accessories, in order to make the 3 holes necessary for the application of classic door hinges in a single work cycle, can be applied to the drilling heads of the following Maggi drilling machines:
- BORING SYSTEM 21 PRESTIGE
- BORING SYSTEM 21 TECHNOLOGY
- BORING SYSTEM 23
- BORING SYSTEM 29
- BORING SYSTEM 35
- BORING SYSTEM 323
- BORING SYSTEM 323 DIGIT
HINGE AGGREGATE CANNOT BE APPLIED ON THE BORING SYSTEM 46 DRILLING MACHINE
The drilling aggregates for hinges and for Cabineo can be applied to all traditional Maggi drilling machines, EXCEPT THE BORING SYSTEM 46
See comparative table in the attached images ...
The total work cycle time with the Cabineo software depends on the set drilling speed, and is:
The aggregate for creating Cabineo joint holes must be positioned at the 3 points on the drilling head where the slots for large-sized drill bits are located, as can be seen in the attached image.
The characteristics and performance of the 5 models that make up the Maggi BORING SYSTEM single-head drilling machine family are very similar. The specific features to consider when choosing the ideal model for your needs are showed in the attached table ...
ATEX certification is a European directive that applies to equipment that can be used in potentially explosive environments.
Maggi products, particularly the motors used, are not ATEX certified.
For more information, you can contact our customer service office at service@maggi-technology.com
You can identify each spare part within the spare parts area on the website at the following link: https://www.maggi-technology.com/it/
Identifying a spare part is easy; the website has a "spare parts identification" function that can be accessed from various points on the site: at the top of each page on the bar, from the HOME page, and through the MENU in the section dedicated to "SPARE PARTS" (as shown in the attached image), as well as in the "SUPPORT" - "after-sales support" section at the bottom of the contact area.
Once you are in the "spare parts identification" function, simply enter the machine code in the search box, and the corresponding exploded views with the codes for all the spare parts will appear. To find out the price of each spare part, you can contact our service directly via email at service@maggi-technology.com or by calling +39 0571 635 433, or you can ask the nearest MAGGI dealer; you can find them on the dealer map on the website at the following link: https://www.maggi-technology.com/it/contatti/mappa-rivenditori.
To print or download the text and image contents of the product sheet, simply click on the .pdf link located below the main image of the product of interest (as shown in the attached image); then you can decide, within your printing program, whether to proceed with printing the document directly (the print quality will depend on your settings) or to create the PDF file (the .pdf file is quite large due to the presence of many images; for sending the document via email, it is recommended to save the document using the "save PDF with reduced size" option).
Maggi guarantees the availability of spare parts for up to 10 years from the product's manufacturing date.
For spare parts older than 10 years, availability is not guaranteed; you can send a request to our after-sales service (service@maggi-technology.com ) specifying the machine code in question, the year of manufacture, and including a photo of the product and the component for which you are requesting the spare part.
The tolerance for the indicated voltages is ±10%.
To allow the Maggi consultants to evaluate if a certain processing is feasible with one of their machines, I need to provide the following information and data:
