Safety device for a safe and effective workpiece feeding on different types of traditional wood-working machines.
- Improves the safety: the operator does not have to put his hands close to the tool
- Improves the finish quality, thanks to the constant and even feed-rate
- Feed-rate can be easily selected to meet every specific working need
- Easily adjustable to suit different sizes of work piece
More than 400.000 machines manufactured, over sixty years' experience. Maggi is the only European manufacturer of power-feeding units, which are 100% Italian-made, and abiding by the highest quality standards, as a result of the "Lean" manufacturing process, also known as "Toyota System".
Main features: N.8 fixed speeds (3,5- 4 -6,5-8- 11-12,5-22-25 mt/min)
N.3 wheels (diam./ thickness 120x60 mm)
Motor power: 1 HP / 0,75 kW - 1.400/2.800 RPM
Cast aluminium housing, finished on high-precision machining centers
Steel-made gear cover
Eco-friendly, rust-resistant powder coating
Manufactured according to EC standards
Cast aluminium housing and steel-made gear cover
1 HP motor with 3mt cable
50-Shore "Feeder Grip" rubber wheels
Package: recyclable cardboard box
3-wheel model: the ideal solution for the feeding of laths and medium or small-size workpieces. Thanks to the two infeed-wheels and the third outfeed one, the workpiece is constantly and evenly feeded althrough the working process, thus remarkably improving the quality of the end products.
The speed selector allows a quick set-up of the 1st and the 2nd feeding rate and the quick change of the feeding direction back and forth. First 4 speeds are obtained by swapping the internal gears, while replacing them with the set of gears, included in the equipment, You get the additional 4 speeds.
50-Shore wheels made of patented "Feeder Grip" rubber, providing the longest durability and the highest grip on the workingpiece.
A power-feeder improves the safety as it feeds the workpiece close to the tool, while operator's hands are kept at a distance. Its effectiveness depends on specific design and manufacturing criteria. Maggi feeders are the only ones designed and manufactured in Italy and abiding by all EU safety norms.
For easy positioning and adjusting of the feeding unit on the machine tool. It is easy to fix, stable and strong: foot, cross-shaped piece, pipe, joint and collar are made of cast-iron and the two columns are made of rectified steel of considerable thickness. Handles made of steel and adjusting wheels allow a quick and accurate positioning.
The 20 mm wheel suspention, with calibrated spings, allows the constand and even feeding of workpieces with different thicknesses without any additional set-up.
Additional safety devices, both sides of the feeding unit.
Equipped with safety restraint devices (SPS - System) preventing accidental unkooks, to abide by EC safety norms.
| N. of speeds back and forth | 8 |
|---|---|
| Fixed speeds | 3,5 - 4 - 6,5 - 8 -11-12,50 - 22 - 25 m/min |
| N. of wheels | 3 |
| Wheel diameter and thickness | 120 x 60 mm |
| Motor | 1 HP / 0,75 KW RPM 1400 /2800 |
| Wheel suspension | 20 mm |
| Distance between wheels | 133mm - 153 mm |
| Distance between first and last wheel | 286 mm |
| Overall dimensions and net weight of the feeding unit | 474 x 220 x 490 mm - 31 Kg |
| Overall dimensions and net weight of the stand | 540 x 910 mm - 35 Kg |
| Package dimensions and gross weight (feeding unit) | 670 x 570 x 330 mm - 32 Kg |
| Package dimensions and gross weight (stand) | 800 x 330 x 330 mm - 37 Kg |
The special rubber covering, patented and guaranteed by Maggi: 60-year leading manufacturer, ensures the highest grip on the workingpiece.
Patented "Feeder Grip 363 " rubber wheel 120x 60 mm diam. / 40 shore best suited for extremely smooth surfaces ( veneer / laminated wood)
CODE: 30102015
The special rubber covering, patented and guaranteed by Maggi: 60-year leading manufacturer, ensures the highest grip on the workingpiece
Rubber wheel 118x 50 mm diam. / 65 shore, best suited for rough surfaces ( unfinished wood)
CODE: 30100014
Guaranteed highest grip, specific for the feeding of panels with an unfinished surface ( raw wood)
Wheel made of cast-iron 120x60 mm
CODE: 40102015
The special rubber covering, patented and guaranteed by Maggi: 60-year leading manufacturer, ensures the highest grip on the workingpiece
Patented "Feeder Grip 758 " rubber wheel 120x 60 mm diam. / 50 shore, best suited for smooth surfaces ( finished wood)
CODE: 30100015
It permits to fix the base of the universal stand sideways of the working table and to tilt the power-feeding unit quickly to free space for maintenance and/or other adjusting operations
CODE: 22100151
It allows to position the power-feeding unit at a greater distance from the tool or the working table
CODE: 23201012
Standard universal stand with 705 mm horizontal and 540 mm vertical column
It is the essential complement to the power-feeding unit as it allows its positioning and fine adjustment on the machine tool
CODE: 13200700
Universal stand with 1.050 mm horizontal and 540 mm vertical column
It is the essential complement to the power-feeding unit as it allows its positioning and fine adjustment on the machine tool. This type of stand has a longer horizontal tube for a greater versatility
CODE: 13300700
"V" universal stand with 1.050 mm horizontal and 860 mm vertical column
It is the essential complement to the power-feeding unit as it allows its positioning and fine adjustment on the machine tool. This type of stand has a longer horizontal and vertical tube for an even greater versatility
CODE: 13500700

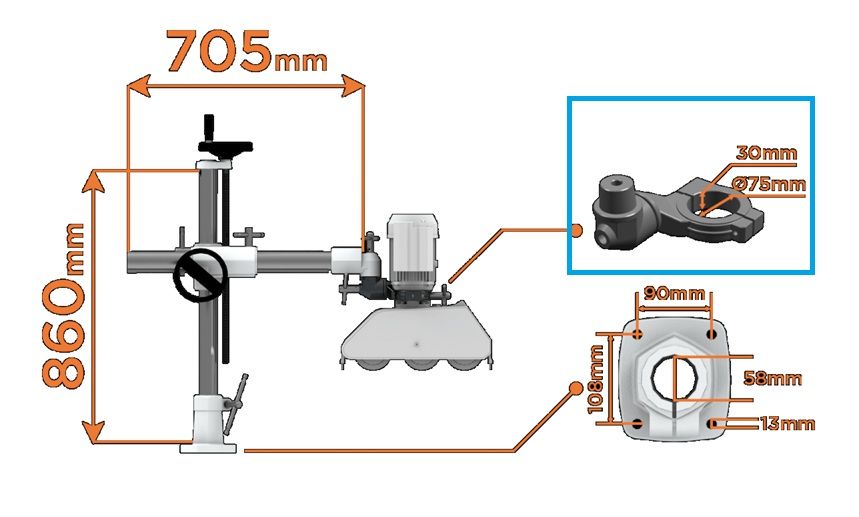

"V-M" universal stand with 705 mm horizontal and 860 mm vertical column
It is the essential complement to the power-feeding unit as it allows its positioning and fine adjustment on the machine tool. This type of stand has a longer vertical tube for a greater versatility
CODE: 13099999
"Plus" universal stand with 1050 horizontal and 540 mm vertical column
QUICK, EASY AND ACCURATE POSITIONING thanks to the ergonomic handles and the numeric counter for the height adjustment
CODE: 13400600
To have the machine working in small handcraft shops having an electric system running on 220 Vlts
CODE:
Electrical standards abiding by the Canadian wiring regulations
CODE:
